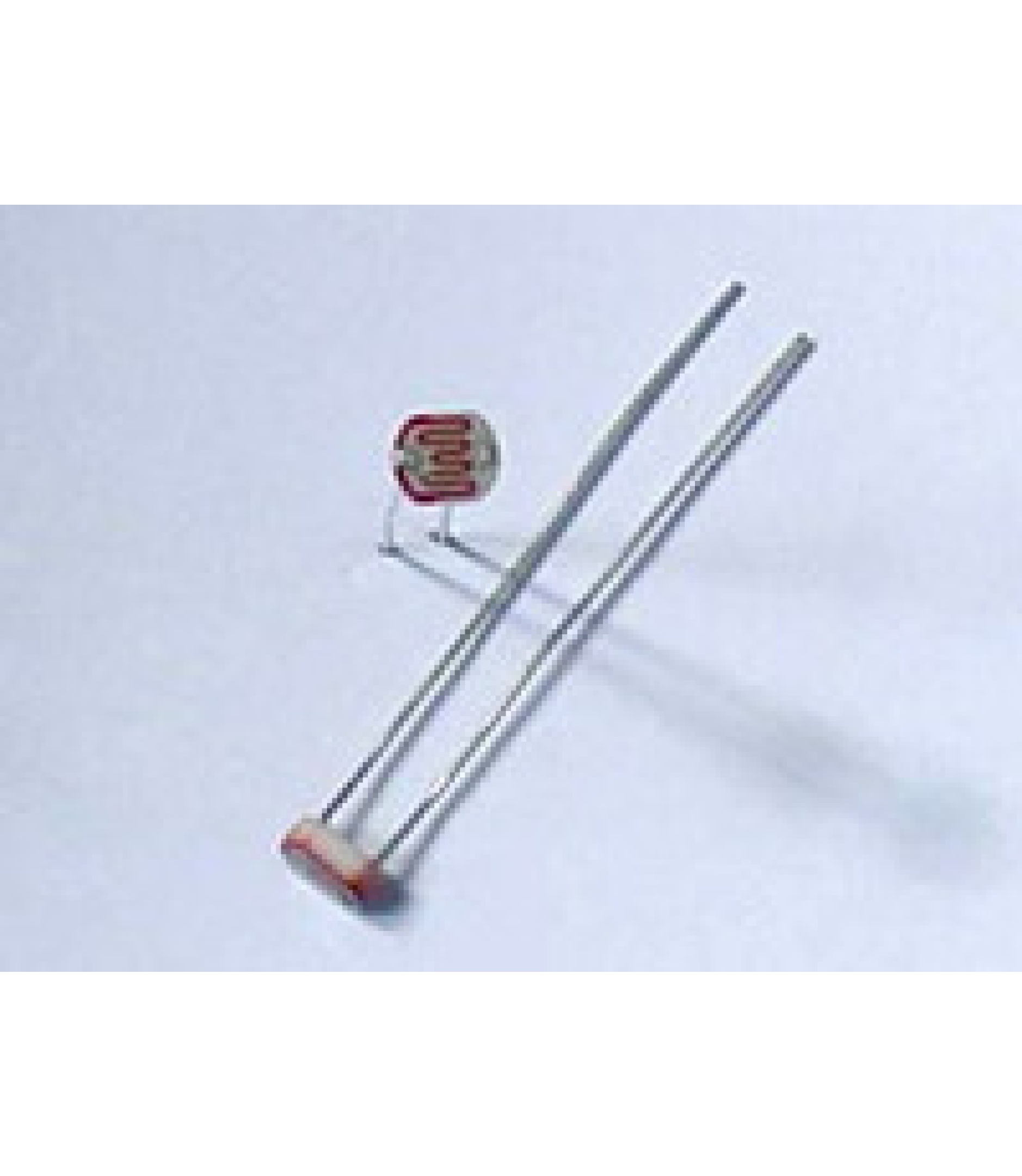

Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 — resistor / terminator
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 — resistor / terminator。售价 0.24 USD，当前有货，SKU NULL，归类于 Resistors，页面可抽取 6 项量化参数。
- SKU
- NULL
- Price
- 0.24 USD
- Stock
- 有货
- Category
- Resistors
适用场景 (Applicable scenarios)
- 无人机载荷：航拍、测绘、气体检测与巡检
- 无人机整机装机与备件替换
核心参数 (Core specifications)
- 价格 / Price：0.24 USD
- Manufacturer：100 Electronics
- Spectral peak (nm)：540nm
- Maximum Voltage：150VDC
- Photo Resistance at 10LUX：10-20KΩ
- Dark Resistance：0.5MΩ
- Power consumtion：100mW
竞品对比 (Competitor comparison)
- 本站现价 0.24 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 6 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 多少钱？ / How much does it cost?
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 现价 0.24 USD，库存状态：有货。
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 的核心参数有哪些？ / What are the key specifications?
Manufacturer：100 Electronics；Spectral peak (nm)：540nm；Maximum Voltage：150VDC；Photo Resistance at 10LUX：10-20KΩ；Dark Resistance：0.5MΩ；Power consumtion：100mW。
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 属于哪个类目？ / Which category is it in?
类目：Resistors。
Photo Conductive Cell Resistor LDR 540nm RADIAL 5528 适合哪些使用场景？ / What is it used for?
resistor / terminator 相关场景：无人机载荷：航拍、测绘、气体检测与巡检、无人机整机装机与备件替换。
Photo resistors, also known as light dependent resistors (LDR), are light sensitive devices most often used to indicate the presence or absence of light, or to measure the light intensity.
In the dark, their resistance is very high, sometimes up to 2MΩ, but when the LDR sensor is exposed to light, the resistance drops dramatically, even down to a few ohms, depending on the light intensity.
LDRs have a sensitivity that varies with the wavelength of the light applied and are nonlinear devices.
They are used in many applications but are sometimes made obsolete by other devices such as photodiodes and phototransistors.
Manufacturer: 100 Electronics
Manufacturer Part No: 5528
Product Category: Optical Sensor
Datasheet: Click Here
Specifications
Product Type: CDS Photo Conductive Cell
Package: RADIAL 5mm
Spectral peak (nm): 540nm
Maximum Voltage: 150VDC
Photo Resistance at 10LUX: 10-20KΩ
Dark Resistance: 0.5MΩ
Power consumtion: 100mW
More Information
Same Spec Items
A-5795
SKU
A-1528
Manufacturer
100 Electronics
MPN
5528
Can be used with
–
Customer Ratings
4.7/5
Based on 2 reviews
5 Stars
4
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
Write a review
Price
Quality
Value
May 11, 2014
Good Value LDRs
Very good value, but the resistance range was a bit less than more expensive ones I have previously bought (not a big problem though). Datasheet is here:
http://www.datasheetarchive.com/dlmain/Datasheets-27/DSA-530063.pdf
GAB
Price
Quality
Value
May 20, 2013
Cheap LDR with nice range.
I didn’t found some info about its minimum or maximum resistance. I measured few LDRs from 100Electronics.
It’s about 150-180 Ohms with a super bright blue led in front of LDR, and about 600-900 kOhms in dark room. Well it would be better to use red led, but I had not some of them.
Also, it reacts pretty fast up to 30-40 kOhms, but maximum resistance is reached with 10-15 seconds.
Vadim
