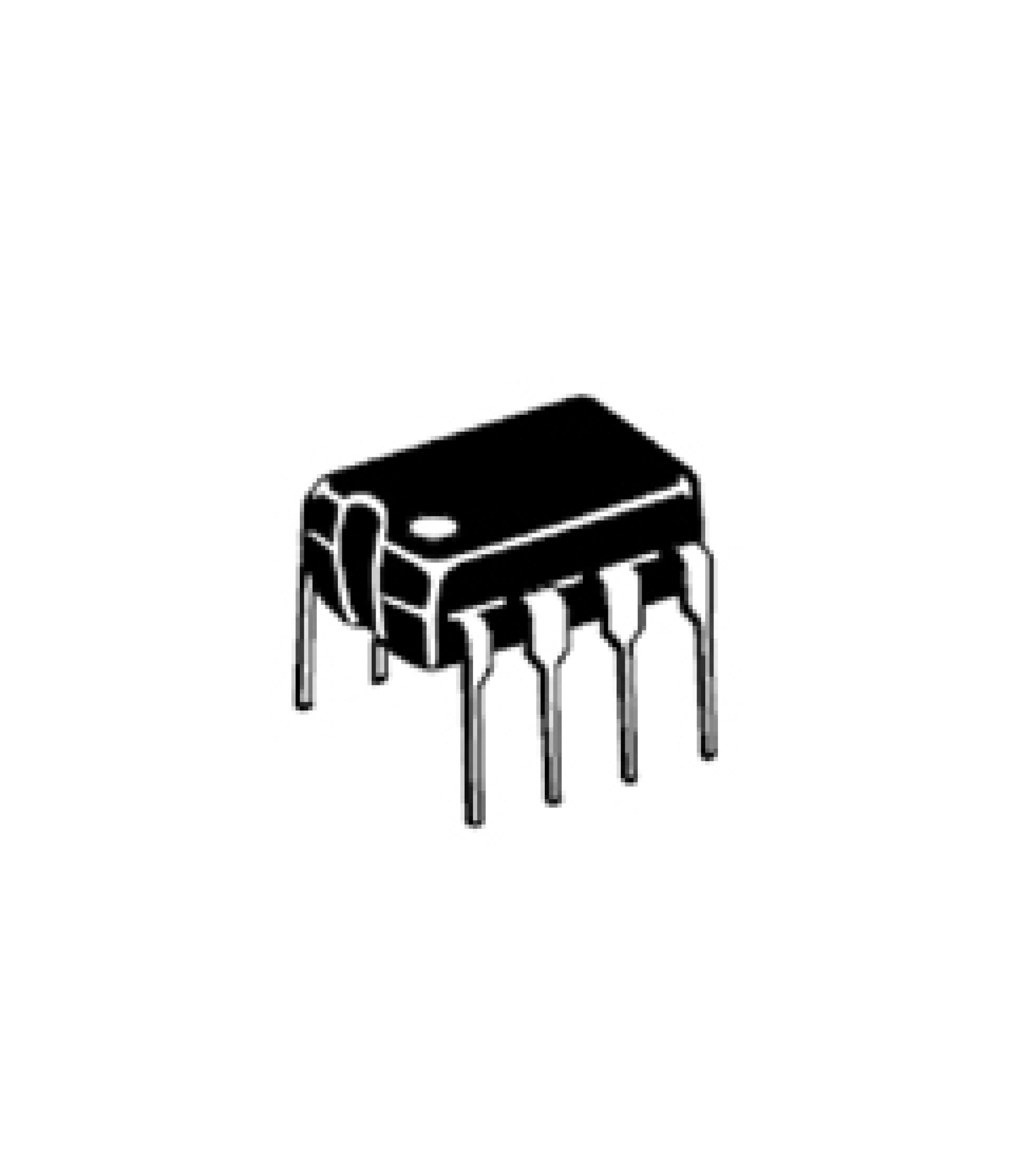

NE5534 IC 5534 Low-Noise Operational Amplifier IC
NE5534 IC 5534 Low-Noise Operational Amplifier IC。售价 0.99 USD，当前有货，SKU NULL，归类于 ( IC ) INTEGRATED CIRCUITS，页面可抽取 6 项量化参数。
- SKU
- NULL
- Price
- 0.99 USD
- Stock
- 有货
- Category
- ( IC ) INTEGRATED CIRCUITS
适用场景 (Applicable scenarios)
- 射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路
核心参数 (Core specifications)
- 价格 / Price：0.99 USD
- 10 MHz
- 100 dB
- 32 V
- 18 V
- 13 V
- 20 V
竞品对比 (Competitor comparison)
- 本站现价 0.99 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 6 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
NE5534 IC 5534 Low-Noise Operational Amplifier IC 多少钱？ / How much does it cost?
NE5534 IC 5534 Low-Noise Operational Amplifier IC 现价 0.99 USD，库存状态：有货。
NE5534 IC 5534 Low-Noise Operational Amplifier IC 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
NE5534 IC 5534 Low-Noise Operational Amplifier IC 的核心参数有哪些？ / What are the key specifications?
10 MHz；100 dB；32 V；18 V；13 V；20 V。
NE5534 IC 5534 Low-Noise Operational Amplifier IC 属于哪个类目？ / Which category is it in?
类目：( IC ) INTEGRATED CIRCUITS。
NE5534 IC 5534 Low-Noise Operational Amplifier IC 适合哪些使用场景？ / What is it used for?
RF amplifier 相关场景：射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路。
Manufacturer: VARIOUS
Manufacturer Part No: NE5534P
Package / Case: PDIP-8
RoHS: Yes
Specifications
Information provided by Manufacturer Datasheet
The NE5534 high-performance operational amplifier combining excellent dc and ac characteristics. Some of the features include very low noise, high output drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate.
These operational amplifiers are internally compensated for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit protection, and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins.
Features
Equivalent Input Noise Voltage . . . 3.5 nV/Hz
Unity-Gain Bandwidth . . . 10 MHz Typ
Common-Mode Rejection Ratio . . . 100 dB Typ
High DC Voltage Gain . . . 100 V/mV Typ
Peak-to-Peak Output Voltage Swing 32 V Typ With VCC± = ±18 V and RL = 600
High Slew Rate . . . 13 V/µs Typ
Wide Supply Voltage Range ±3 V to ±20 V
Low Harmonic Distortion
Offset Nulling Capability
External Compensation Capability
