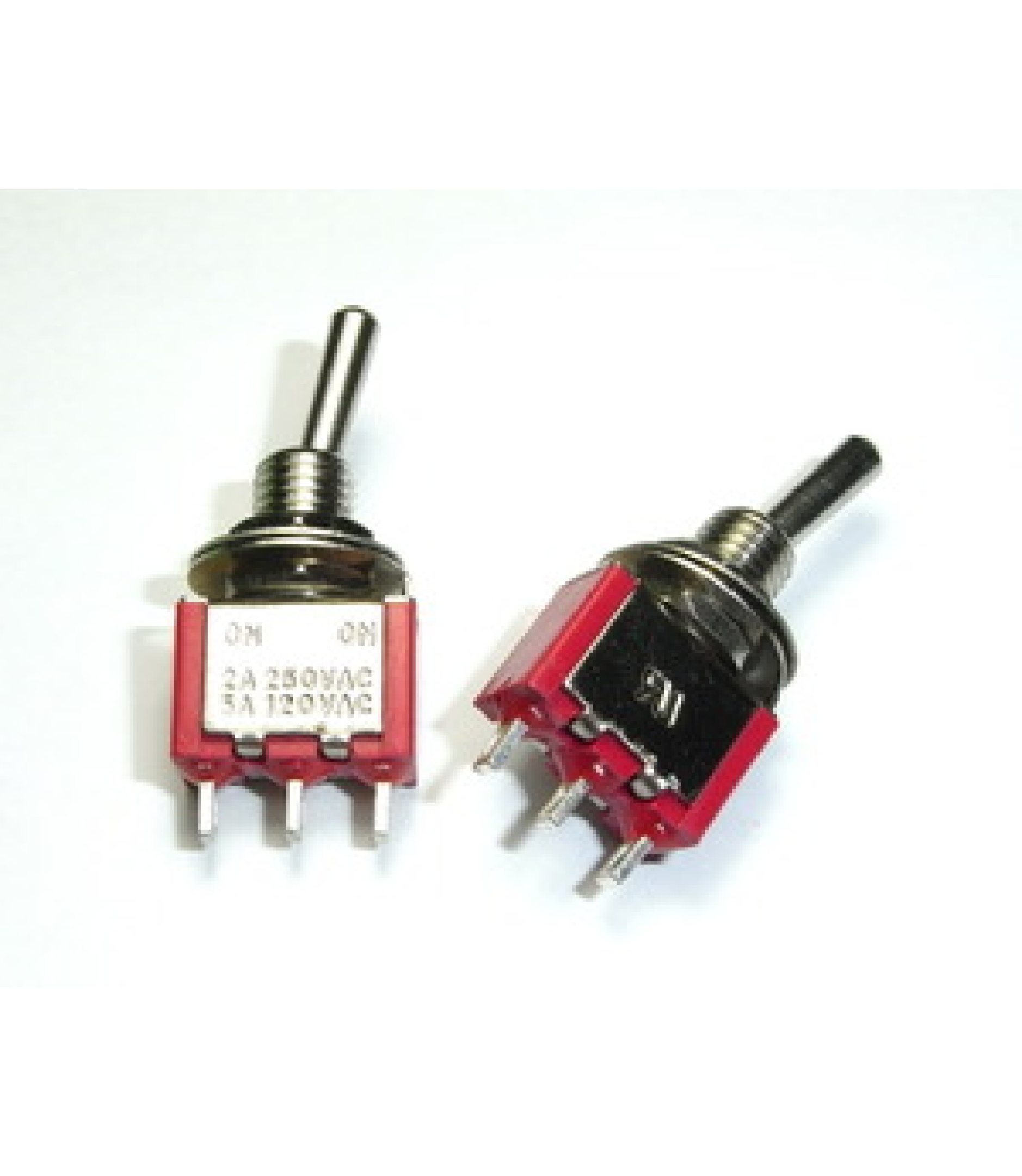

Mini Toggle Switch SPDT On-On — RF switch / relay
Mini Toggle Switch SPDT On-On — RF switch / relay。售价 0.47 USD，当前有货，SKU NULL，归类于 Electromechanical，页面可抽取 7 项量化参数。
- SKU
- NULL
- Price
- 0.47 USD
- Stock
- 有货
- Category
- Electromechanical
适用场景 (Applicable scenarios)
- 电子烟日常使用、雾化器/烟弹替换与零售补货
核心参数 (Core specifications)
- 价格 / Price：0.47 USD
- Current Rating：6A @ 125Vac, 3A @ 250V
- Body Length：13.2mm, Body Width: 7.9mm,
- Body Height：9.5mm
- Pin Size：0.80mm(W) 2.00mm(L) 3.75mm
- Pin Spacing：4.70mm
- Mounting Hole：6mm diameter
- Overall Height：33.3mm
竞品对比 (Competitor comparison)
- 本站现价 0.47 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 7 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
Mini Toggle Switch SPDT On-On 多少钱？ / How much does it cost?
Mini Toggle Switch SPDT On-On 现价 0.47 USD，库存状态：有货。
Mini Toggle Switch SPDT On-On 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
Mini Toggle Switch SPDT On-On 的核心参数有哪些？ / What are the key specifications?
Current Rating：6A @ 125Vac, 3A @ 250V；Body Length：13.2mm, Body Width: 7.9mm,；Body Height：9.5mm；Pin Size：0.80mm(W) 2.00mm(L) 3.75mm；Pin Spacing：4.70mm；Mounting Hole：6mm diameter。
Mini Toggle Switch SPDT On-On 属于哪个类目？ / Which category is it in?
类目：Electromechanical。
Mini Toggle Switch SPDT On-On 适合哪些使用场景？ / What is it used for?
RF switch / relay 相关场景：电子烟日常使用、雾化器/烟弹替换与零售补货。
Datasheet: Click Here
Switch Function: ON-ON
Switch Type: Latching
Lightweight Construction
Standard Hole Mounting
Current Rating: 6A @ 125Vac, 3A @ 250Vac
Body Length: 13.2mm, Body Width: 7.9mm, Body Height: 9.5mm
Pin Size: 0.80mm(W) 2.00mm(L) 3.75mm(H)
Pin Spacing: 4.70mm
Mounting Hole: 6mm diameter
Overall Height: 33.3mm
RoHS: Yes
More Information
Same Spec Items
A-5248
SKU
A-4567
Manufacturer
100 Electronics
MPN
Mini Toggle Switch SPDT On-On
Can be used with
–
Customer Ratings
5/5
Based on 3 reviews
5 Stars
9
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Write a review
Price
Quality
Value
Aug 7, 2013
Great one
It’s awesome, but maybe i’ve got wrong drill or the information is wrong. It says, that the mounting hole has to be 4mm, but in my case I had to make it up to 6.
But anyway this is a great spdt.
Mihail
Price
Quality
Value
Jun 25, 2013
used in pedal and guitar
I put two in my epi les paul for series/parallel switching..
I had single coil and series parallel wired up, but the switches I got elsewhere gave me nothing but trouble.
so I bought some of these.. dumped the single coils setting..
no noise, quiet switching.. work perfect.
I put two in a distortion pedal, one bright, one boost, and they also worked perfectly there.
excellent site.. good stuff.. great prices. fast shipping..
patrick
Price
Quality
Value
Feb 27, 2013
Small SPDT toggle switches
These are small but robust enought SPDT toggle switches. Current rating is enought, and you can always hook these to control relay. Another good application is MAN/AUTO selection.
Comes with full installation kit, including two washers, from which another is star washer, and two normal thin nuts. I accidentally broke one, when i over-tightened when installing. with this in mind however, these are good choise for toggle switch purposes. There is writing on switch however that says 2A/250vac, and 5A/120vac. that differs little bit what is said on-site.
Atte
