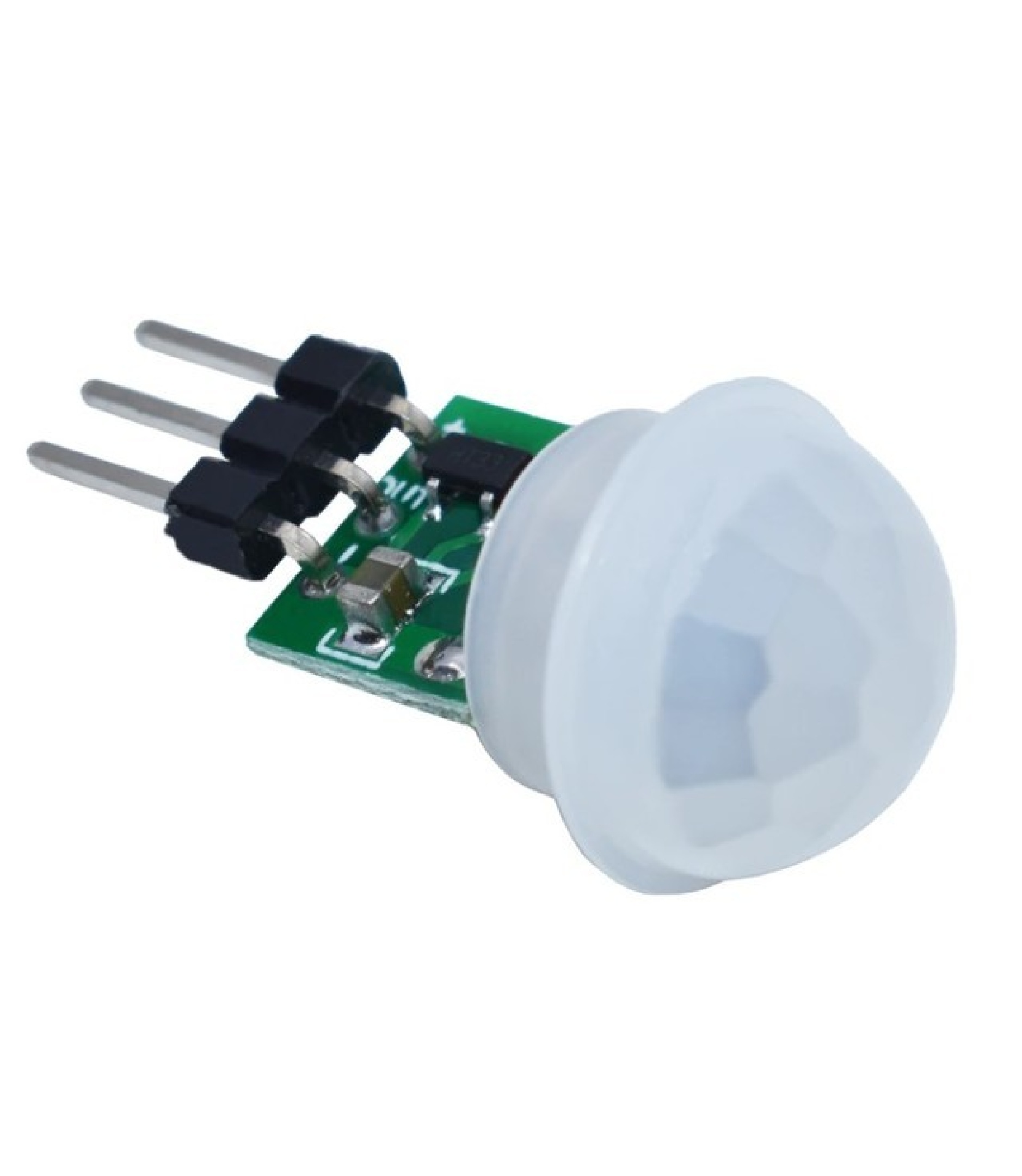

Mini PIR Motion Sensor Switch Module — RF switch / relay
Mini PIR Motion Sensor Switch Module — RF switch / relay。售价 0.89 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 5 项量化参数。
- SKU
- NULL
- Price
- 0.89 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机载荷：航拍、测绘、气体检测与巡检
- 无人机整机装机与备件替换
- 射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路
核心参数 (Core specifications)
- 价格 / Price：0.89 USD
- Operating voltage：2.7 to 12VDC
- Delay time：2 Sec
- Block Time：2 Sec
- 0.1mA
- 8mm
竞品对比 (Competitor comparison)
- 本站现价 0.89 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 5 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
Mini PIR Motion Sensor Switch Module 多少钱？ / How much does it cost?
Mini PIR Motion Sensor Switch Module 现价 0.89 USD，库存状态：有货。
Mini PIR Motion Sensor Switch Module 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
Mini PIR Motion Sensor Switch Module 的核心参数有哪些？ / What are the key specifications?
Operating voltage：2.7 to 12VDC；Delay time：2 Sec；Block Time：2 Sec；0.1mA；8mm。
Mini PIR Motion Sensor Switch Module 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
Mini PIR Motion Sensor Switch Module 适合哪些使用场景？ / What is it used for?
RF switch / relay 相关场景：无人机载荷：航拍、测绘、气体检测与巡检、无人机整机装机与备件替换、射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路。
Specifications
Operating voltage: 2.7 to 12VDC
Static power consumption: <0.1mA
Delay time: 2 Sec
Block Time: 2 Sec
Trigger mode: Repeatable
Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)
Operating Temperature: -20 to 60°
Module Lens: Small Lens
PCB Dimension(L*W): 10*8mm
Product features:
1. Low power consumption, small size, easy installation.
2. Internal use of digital signal processing PIT, strong interference.
3. High sensitivity, reliability, and can be widely used in automatic detection circuit
4. Repeatable trigger mode: that is, after the induction output is high, in the delay period, if the body in the induction period of activity, the output will remain high until the delay after the person to become low level ( Ie, the detection module detects a delay period after each activity of the body, and uses the last active time as the starting point for the delay).
More Information
Same Spec Items
–
SKU
A-6924
Manufacturer
100 Electronics
MPN
Mini PIR Motion Module
Can be used with
–
