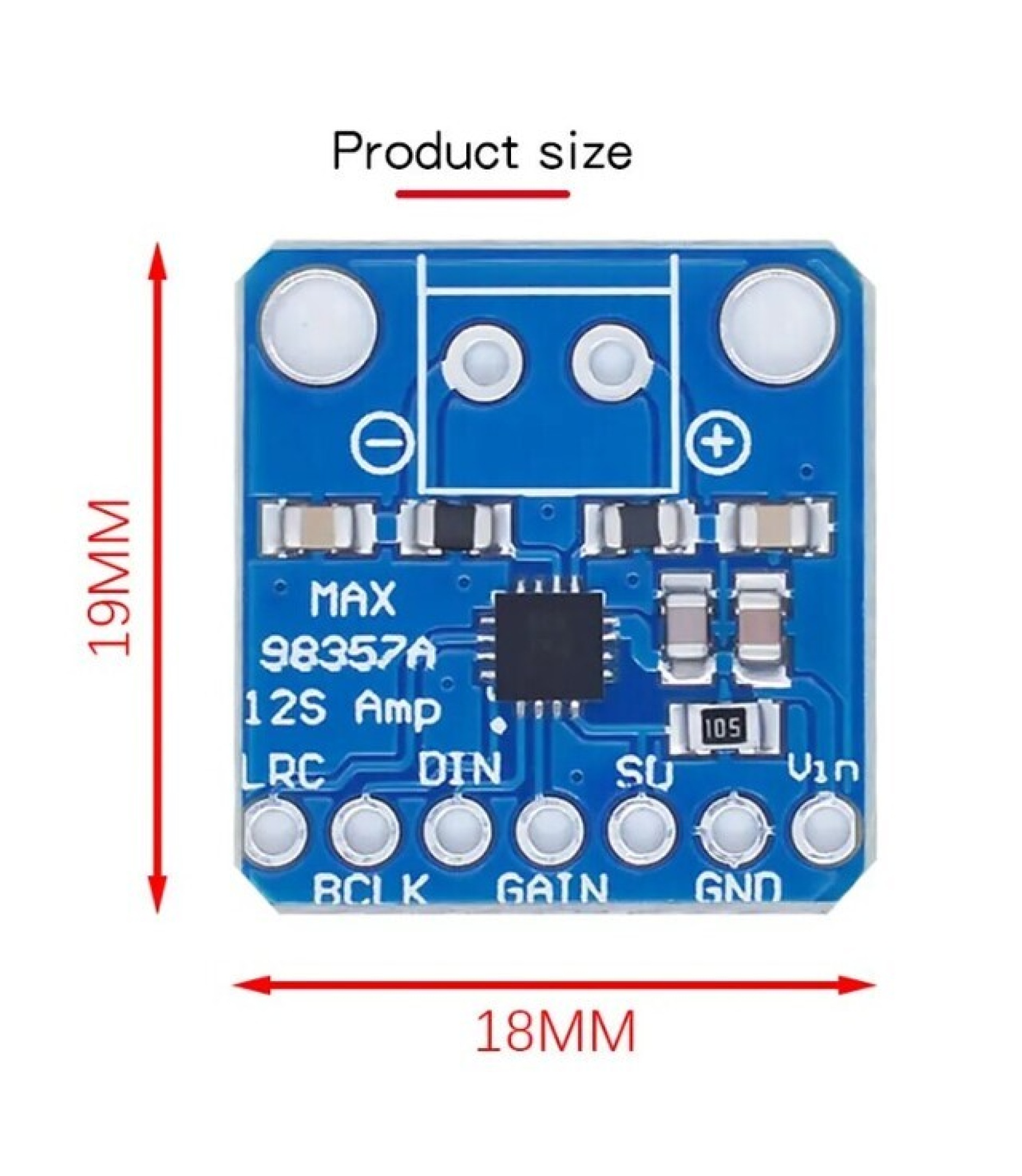

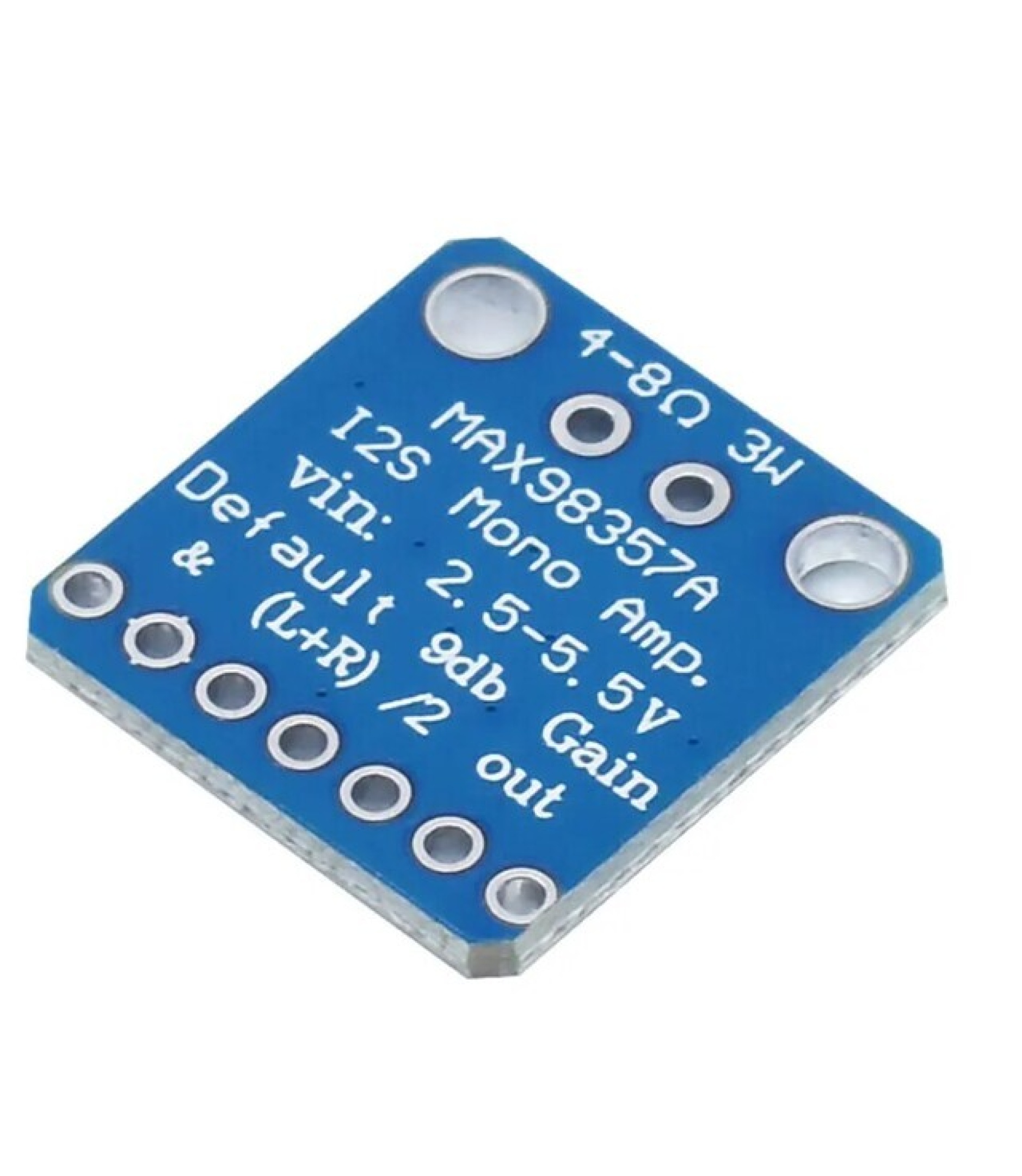

MAX98357 I2S 3W Class D Amplifier Breakout
MAX98357 I2S 3W Class D Amplifier Breakout。售价 2.09 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 4 项量化参数。
- SKU
- NULL
- Price
- 2.09 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机整机装机与备件替换
- 遥控链路与图传系统
- 射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路
核心参数 (Core specifications)
- 价格 / Price：2.09 USD
- Output Power：3.2W at 4Ω, 10% THD, 1.8
- PSRR：77 dB typ @ 1KHz
- Five pin-selectable gains：3dB, 6dB, 9dB, 12dB, 15
- 96kHz
竞品对比 (Competitor comparison)
- 本站现价 2.09 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 4 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
MAX98357 I2S 3W Class D Amplifier Breakout 多少钱？ / How much does it cost?
MAX98357 I2S 3W Class D Amplifier Breakout 现价 2.09 USD，库存状态：有货。
MAX98357 I2S 3W Class D Amplifier Breakout 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
MAX98357 I2S 3W Class D Amplifier Breakout 的核心参数有哪些？ / What are the key specifications?
Output Power：3.2W at 4Ω, 10% THD, 1.8；PSRR：77 dB typ @ 1KHz；Five pin-selectable gains：3dB, 6dB, 9dB, 12dB, 15；96kHz。
MAX98357 I2S 3W Class D Amplifier Breakout 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
MAX98357 I2S 3W Class D Amplifier Breakout 适合哪些使用场景？ / What is it used for?
RF amplifier 相关场景：无人机整机装机与备件替换、遥控链路与图传系统、射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路。
All in one digital audio amp breakout board that works incredibly well with the Raspberry Pi! If you’re looking for an easy and low cost way to get you digital sound files bumpin’ then the MAX08357 I2S Amp Breakout is for you. It takes standard I2S digital audio input and, not only decodes it into analog, but also amplifies it directly into a speaker. Perfect for adding compact amplified sound, it takes 2 breakouts (I2S DAC + Amp) and combines them into one.
There’s a Gain pin that can be manipulated to change the gain. By default, the amp will give you 9dB of gain. By connecting a pullup or pull down resistor, or wiring directly, the Gain pin can be set up to give 3dB, 6dB, 9dB, 12dB or 15dB.
The ShutDown/Mode pin can be used to put the chip in shutdown or set up which I2S audio channel is piped to the speaker. By default, the amp will output (L+R)/2 stereo mix into mono out. By adding a resistor, you can change it to be just left or just right output
Works great with Raspberry Pi, Arduino Zero, and any other microcontroller or microcomputer with I2S audio outputs
Specifications
Output Power: 3.2W at 4Ω, 10% THD, 1.8W at 8Ω, 10% THD, with 5V supply
PSRR: 77 dB typ @ 1KHz
I2S sample rates from 8kHz to 96kHz
No MCLK required
Click + Pop reduction
Five pin-selectable gains: 3dB, 6dB, 9dB, 12dB, 15dB
Excellent click-and-pop suppression
Thermal shutdown protection
