M28 Wireless Bluetooth Audio Receiver Board Module — cable / jumper
M28 Wireless Bluetooth Audio Receiver Board Module — cable / jumper。售价 1.89 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 6 项量化参数。
- SKU
- NULL
- Price
- 1.89 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机整机装机与备件替换
- 遥控链路与图传系统
- 射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路
核心参数 (Core specifications)
- 价格 / Price：1.89 USD
- Operating Voltage：5V/3.7V-4.2V
- Connection work status：20mA
- Pin definition：5V: Power positive 5V
- 3.5mm
- 12V
- 9800mAh
竞品对比 (Competitor comparison)
- 本站现价 1.89 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 6 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
M28 Wireless Bluetooth Audio Receiver Board Module 多少钱？ / How much does it cost?
M28 Wireless Bluetooth Audio Receiver Board Module 现价 1.89 USD，库存状态：有货。
M28 Wireless Bluetooth Audio Receiver Board Module 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
M28 Wireless Bluetooth Audio Receiver Board Module 的核心参数有哪些？ / What are the key specifications?
Operating Voltage：5V/3.7V-4.2V；Connection work status：20mA；Pin definition：5V: Power positive 5V；3.5mm；12V；9800mAh。
M28 Wireless Bluetooth Audio Receiver Board Module 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
M28 Wireless Bluetooth Audio Receiver Board Module 适合哪些使用场景？ / What is it used for?
cable / jumper 相关场景：无人机整机装机与备件替换、遥控链路与图传系统、射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路。

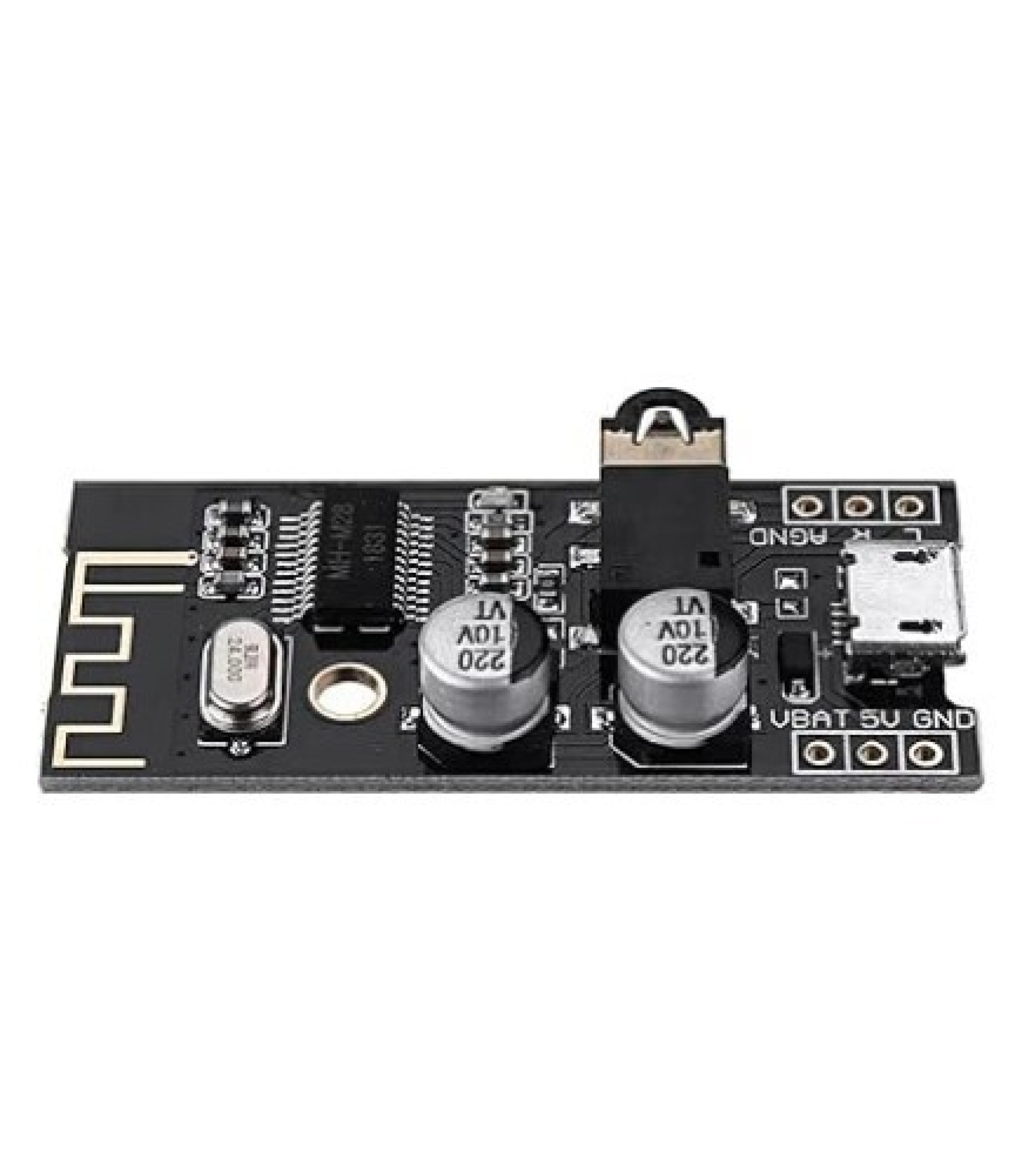

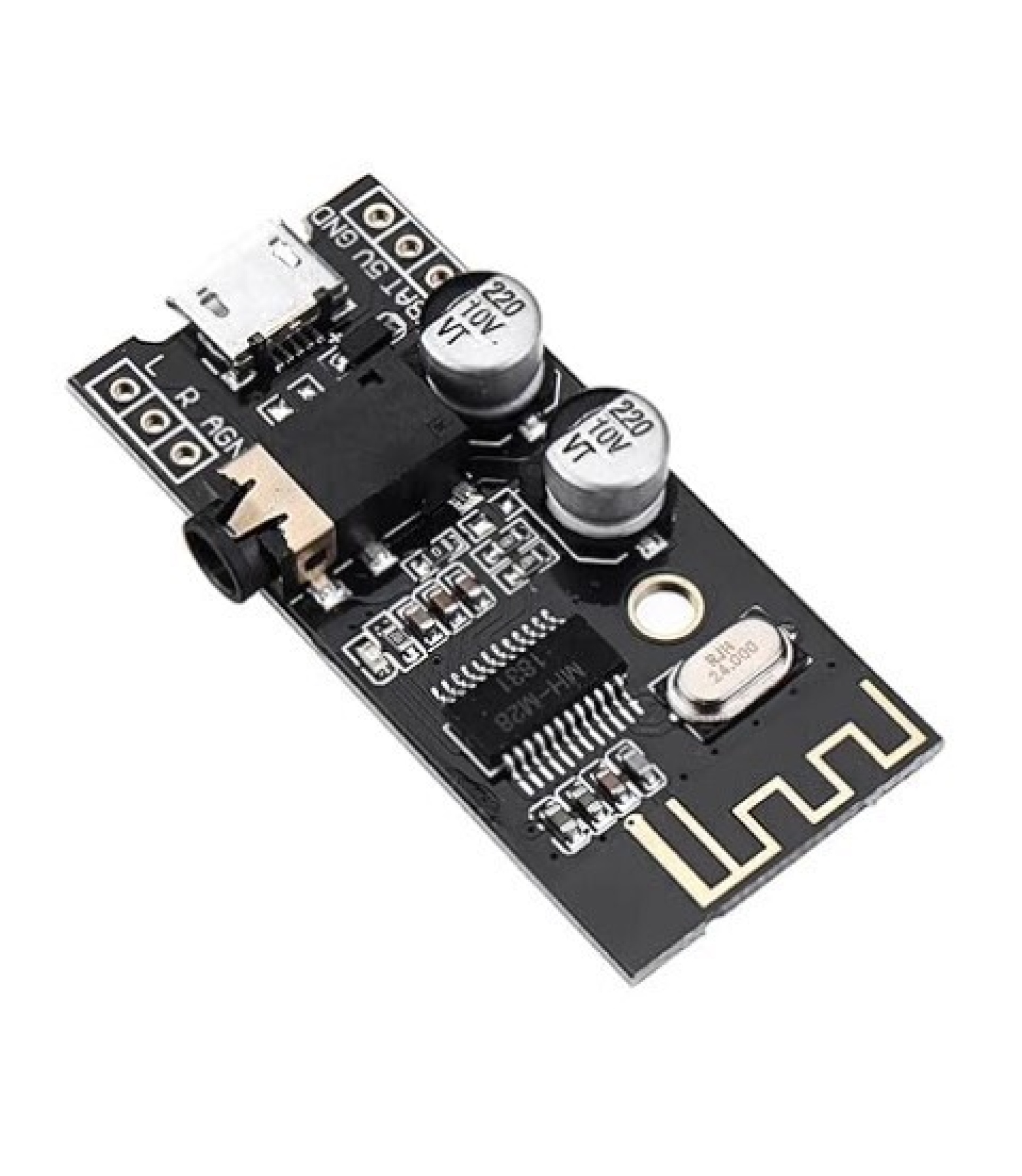

This product M28 is a low-power Bluetooth design solution that supports the latest Bluetooth 4.2 transmission, 2-channel stereo lossless playback. After the module is connected to Bluetooth, it can quickly realize Bluetooth wireless transmission, which is very convenient. In an open environment, the Bluetooth connection distance can reach 20 meters.
Power supply: It can be directly powered by the MICRO USB Android cable 5V, or it can be connected to a 5V power supply or a 3.7V lithium battery. Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.
Audio output: The earphone can be directly connected to the 3.5mm audio interface, or it can be wired for the audio input of the power amplifier board (interface L/R/AGND can be directly wired).
Specifications
Bluetooth version: Bluetooth V4.2
Operating Voltage: 5V/3.7V-4.2V
Connection work status: 20mA
Operating Temperature: -40C to +85C
Pin definition:
5V: Power positive 5V
GND: Negative power supply
VBAT: Lithium battery positive 3.7-4.2V
L: Left channel output
R: Right channel output
AGND: audio ground
Function:
1. Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV / WMA / FLAC / APE / MP3 lossless decoding, stereo dual channel output.
2. After the module is powered on, the cell phone searches for the Bluetooth name XFW-M28, and can play music after connecting Bluetooth.
3. Module blue indicator:
When Bluetooth is not connected, the indicator flashes quickly;
when Bluetooth is connected, the indicator is always on;
when Bluetooth is playing, the indicator blinks slowly.
This board use AC21BP0XXXX Chip
More Information
Same Spec Items
–
SKU
A-4607
Manufacturer
100 Electronics
MPN
M28
Can be used with
–
Customer Ratings
5/5
Based on 1 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Write a review
Price
Quality
Value
Jan 28, 2021
MH-M28
I could not believe the quality of the sound out of this miniature pcb when I connected my cell phone, via bluetooth, to my stereo tube amplifier! The supply is a hefty 12V 9800mAh ion lithium rechargeable battery come into manners with a parallel 78L05 voltage regulator that feeds the circuit with the 5V, 20mA that the circuit needs. Absolutely in love with this super small and inexpensive circuit!
David Garrido
