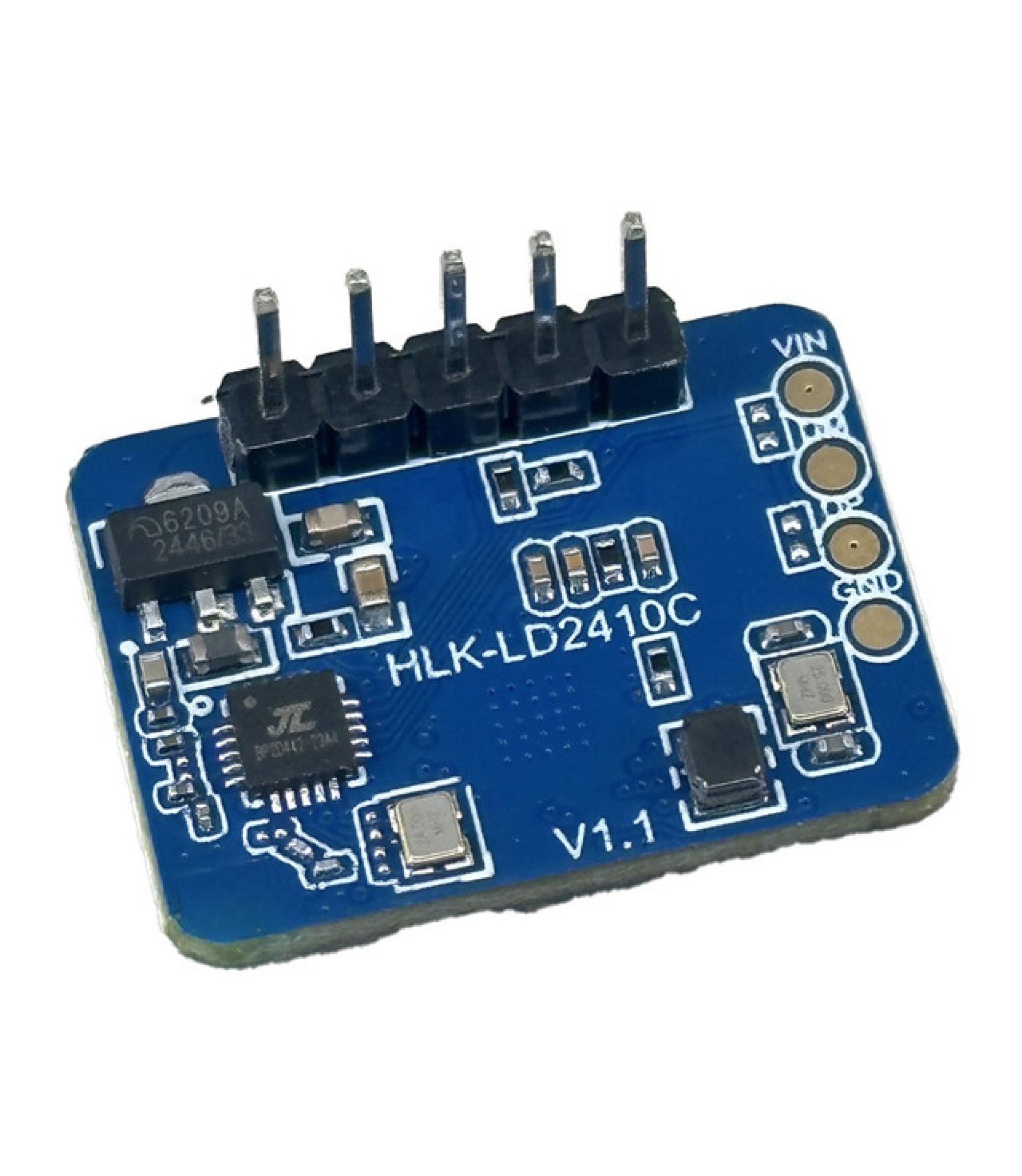

LD2410C 24GHz Human Presence Sensor Module — module / board
LD2410C 24GHz Human Presence Sensor Module — module / board。售价 4.19 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 4 项量化参数。
- SKU
- NULL
- Price
- 4.19 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机载荷：航拍、测绘、气体检测与巡检
核心参数 (Core specifications)
- 价格 / Price：4.19 USD
- Voltage Rated：5V
- Detection distance：0.75m to 6m
- Frequency Band：24GHz
- Size(WxL)：16mm x 22mm
竞品对比 (Competitor comparison)
- 本站现价 4.19 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 4 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
LD2410C 24GHz Human Presence Sensor Module 多少钱？ / How much does it cost?
LD2410C 24GHz Human Presence Sensor Module 现价 4.19 USD，库存状态：有货。
LD2410C 24GHz Human Presence Sensor Module 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
LD2410C 24GHz Human Presence Sensor Module 的核心参数有哪些？ / What are the key specifications?
Voltage Rated：5V；Detection distance：0.75m to 6m；Frequency Band：24GHz；Size(WxL)：16mm x 22mm。
LD2410C 24GHz Human Presence Sensor Module 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
LD2410C 24GHz Human Presence Sensor Module 适合哪些使用场景？ / What is it used for?
module / board 相关场景：无人机载荷：航拍、测绘、气体检测与巡检。

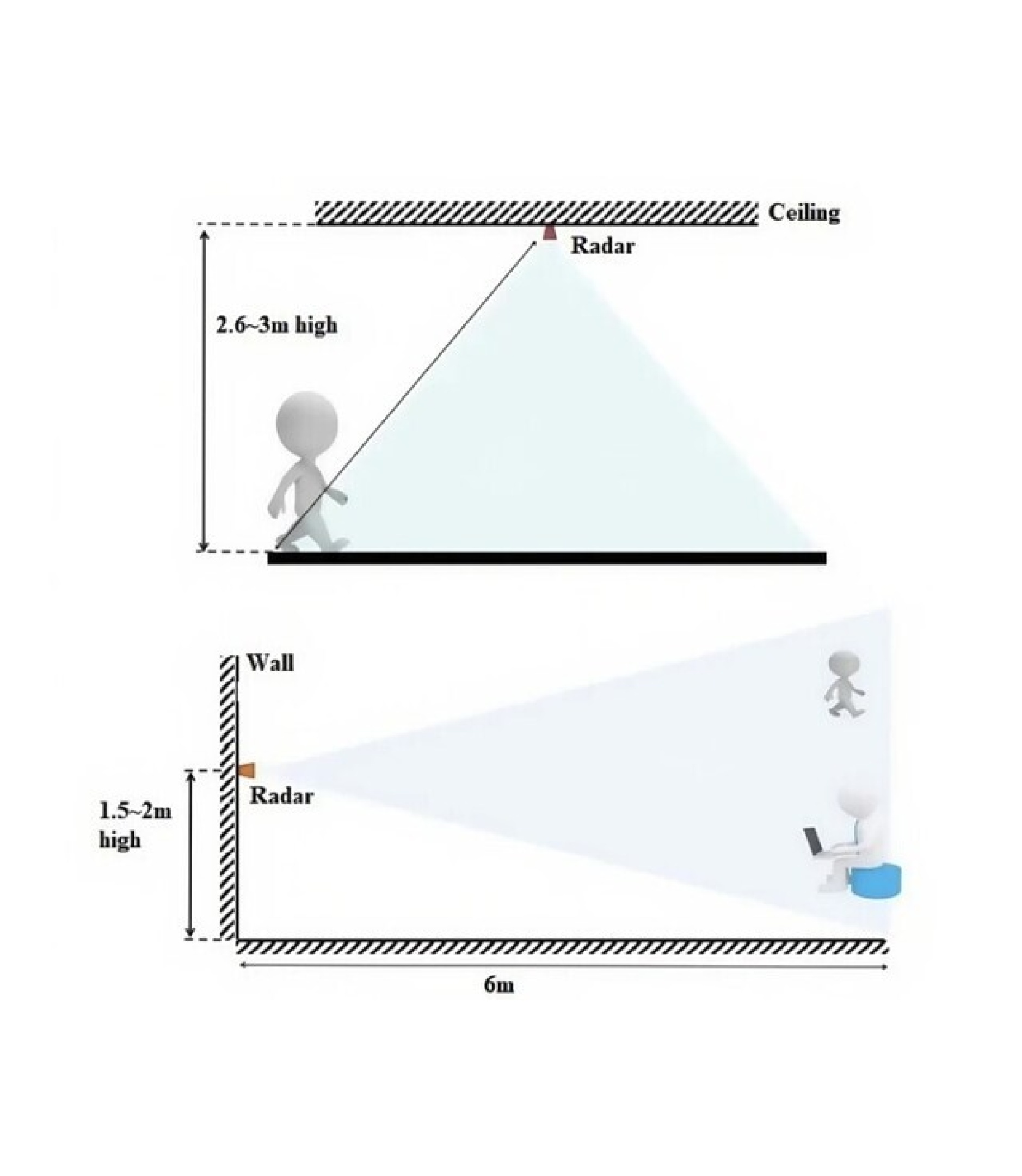

HLK-LD2410C is a 24GHz high-sensitivity human presence detection module developed by Hilink Electronics. Its working principle is to use the FMCW frequency-modulated continuous wave to detect human targets in the designated area, combined with radar signal processing, accurate human body induction algorithm, to achieve high-sensitivity human presence detection, which can identify the human body in the state of movement and stationary, and can calculate auxiliary information such as the distance to the target. This product is mainly used in indoor scenes to detect the presence of a moving or slight movement of a human body in the area, and output real-time detection results. The maximum detection range is 6 meters, and the resolution is 0.75 meters. Provides image configuration tools, which can easily configure the detection distance and detection range at different times, sensitivity and unmanned delay time, etc., to adapt to the needs of different specific applications. Support GPIO and UART output, plug and play, and can be flexibly applied to various intelligent scenarios and terminal products.
Specifications
Voltage Rated: 5V
Detection distance: 0.75m to 6m
Frequency Band: 24GHz
Size(WxL): 16mm x 22mm
Tutorial: Click Here
