LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester — test equipment
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester — test equipment。售价 27 USD，当前有货，SKU NULL，归类于 Hardware & Tools，页面可抽取 7 项量化参数。
- SKU
- NULL
- Price
- 27 USD
- Stock
- 有货
- Category
- Hardware & Tools
适用场景 (Applicable scenarios)
- 柴油发动机维修与大修（工程机械 / 发电机组 / 卡车）
- 无人机整机装机与备件替换
核心参数 (Core specifications)
- 价格 / Price：27 USD
- Capacitance range：1pF-22mF
- Resistance range：10mΩ-10MΩ
- Frequency test：100Hz, 1kHz, 10KHz
- Level test：0.3V, 0.6V RMS
- Power Supply：250mAh lithium battery
- 0.7V
- 150mm
竞品对比 (Competitor comparison)
- 本站现价 27 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 7 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 多少钱？ / How much does it cost?
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 现价 27.00 USD，库存状态：有货。
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 的核心参数有哪些？ / What are the key specifications?
Capacitance range：1pF-22mF；Resistance range：10mΩ-10MΩ；Frequency test：100Hz, 1kHz, 10KHz；Level test：0.3V, 0.6V RMS；Power Supply：250mAh lithium battery；0.7V。
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 属于哪个类目？ / Which category is it in?
类目：Hardware & Tools。
LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester 适合哪些使用场景？ / What is it used for?
test equipment 相关场景：柴油发动机维修与大修（工程机械 / 发电机组 / 卡车）、无人机整机装机与备件替换。

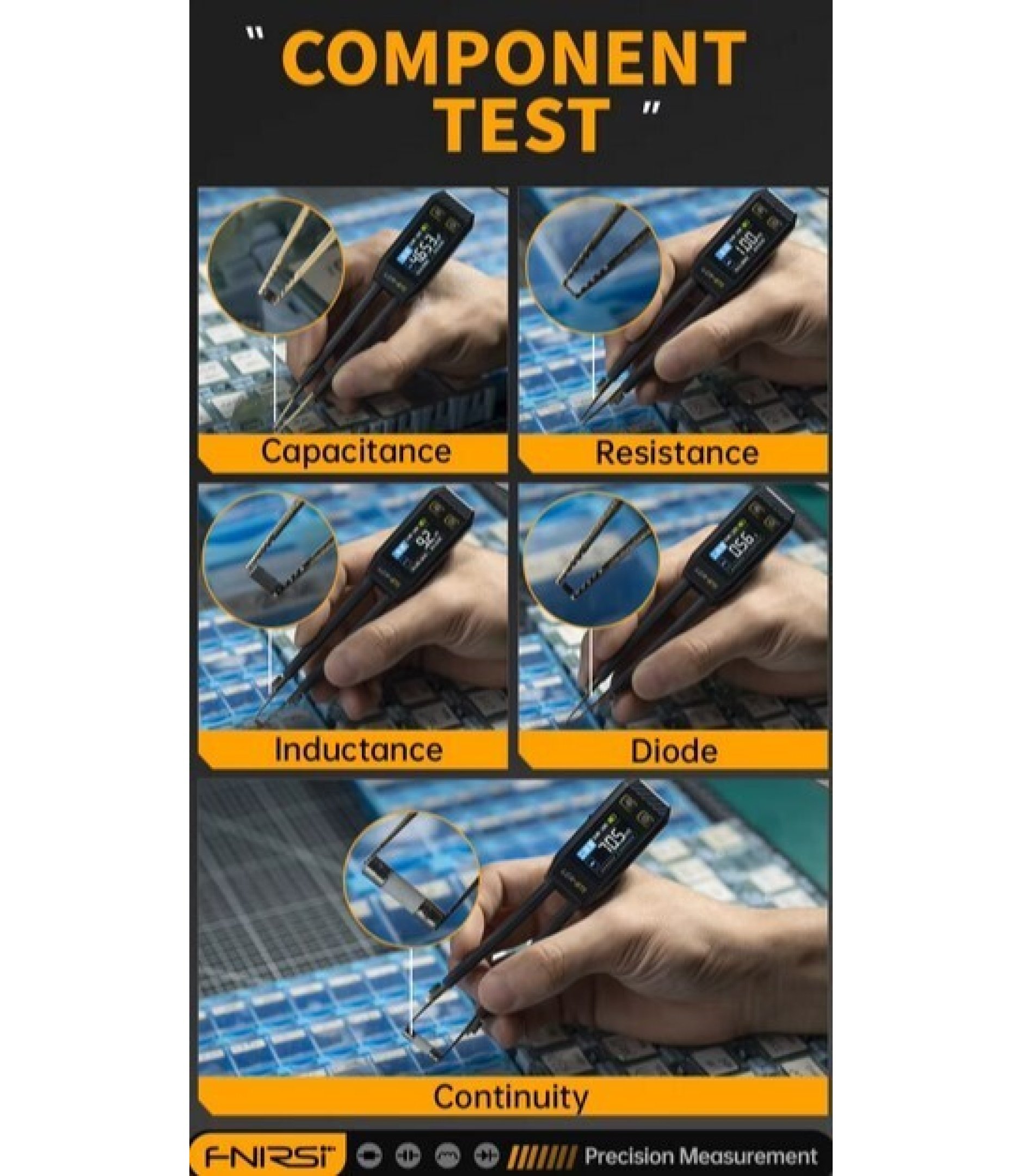

The LCR-ST1, our company’s latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don’t miss out on this excellent tool that combines functionality and portability!

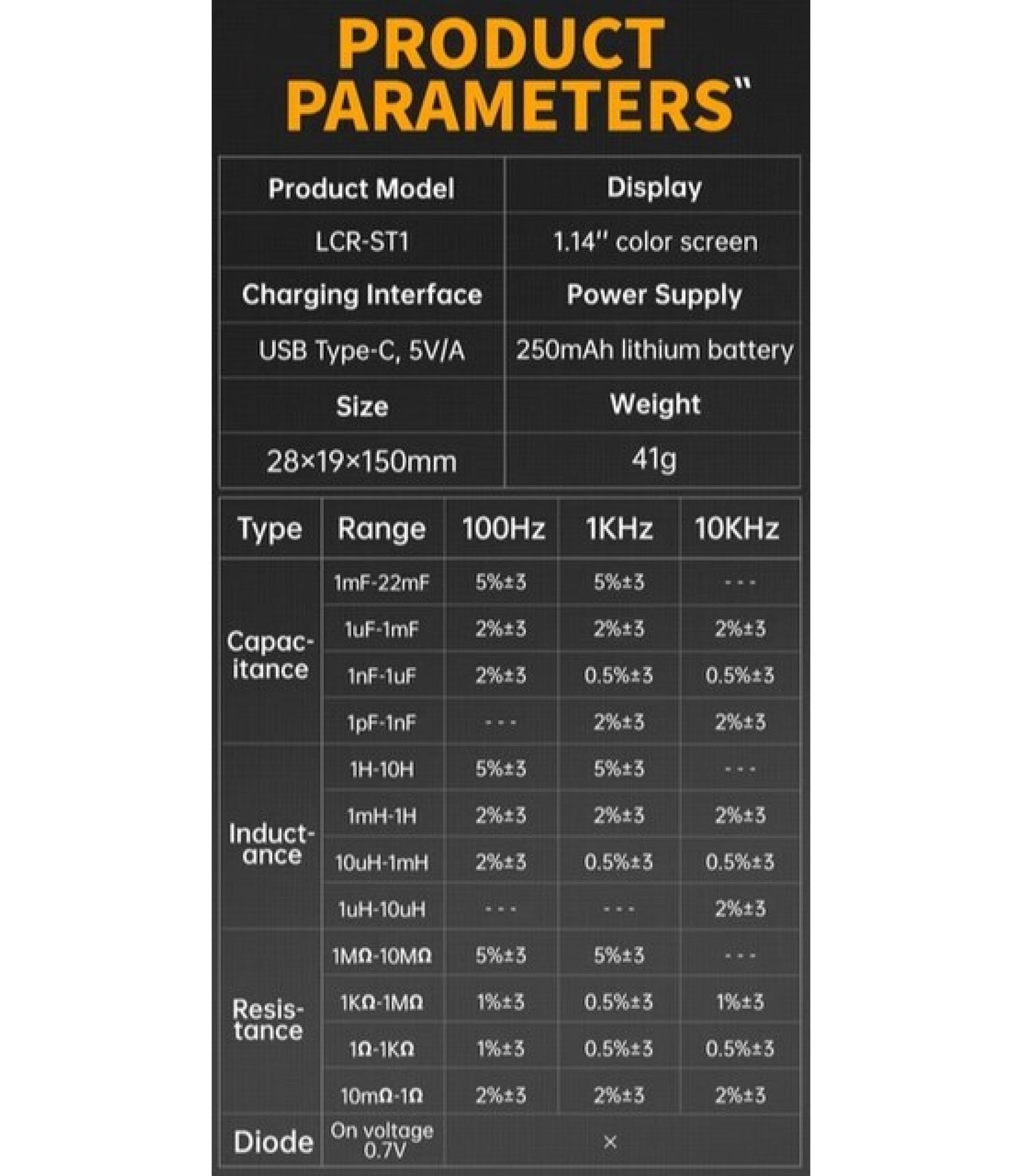

Specifications
Datasheet: Click Here
Capacitance range: 1pF-22mF
Resistance range: 10mΩ-10MΩ
Inductance range: 1μh-10H
Diode: On voltage 0.7V

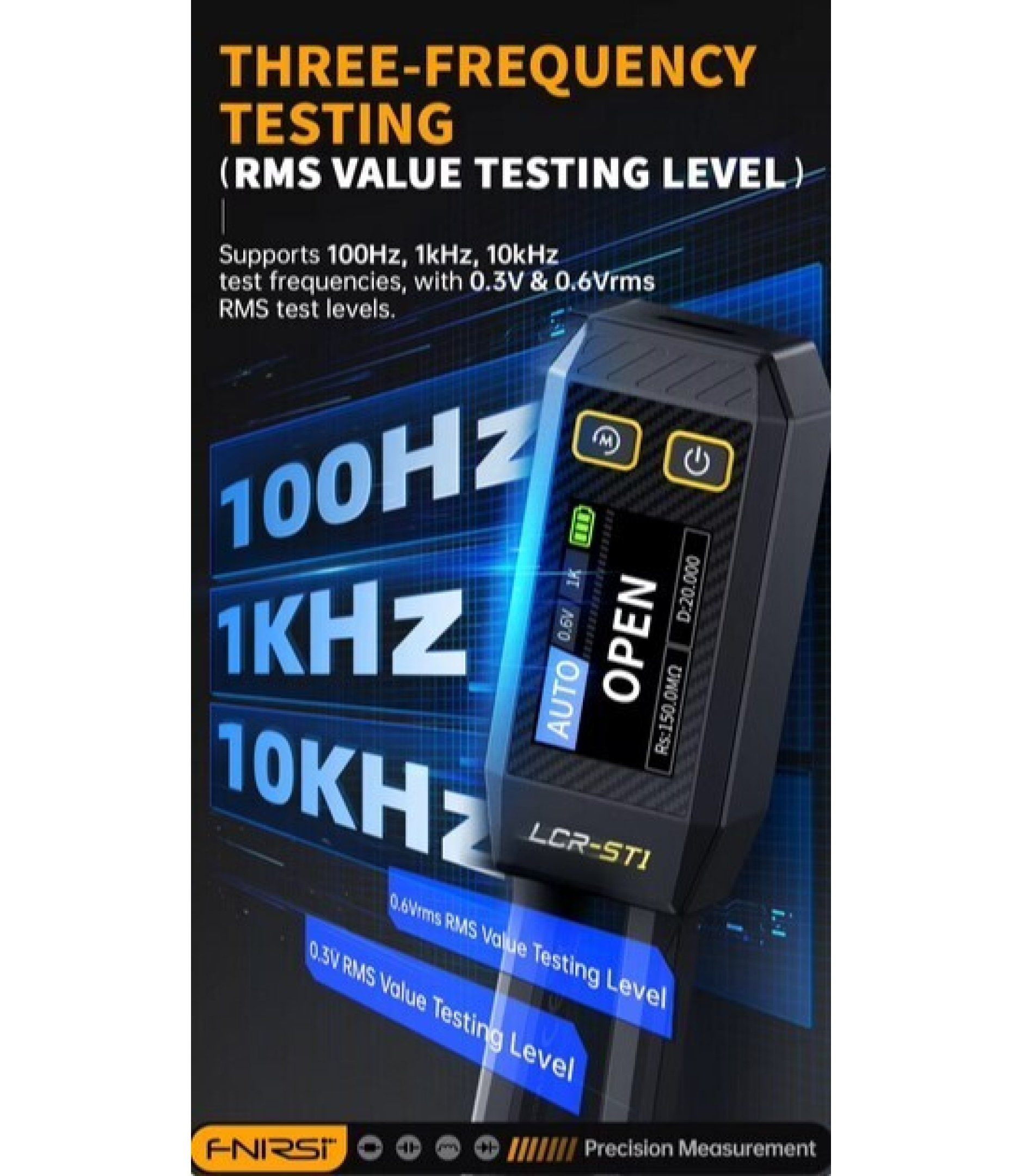

Frequency test: 100Hz, 1kHz, 10KHz
Level test: 0.3V, 0.6V RMS

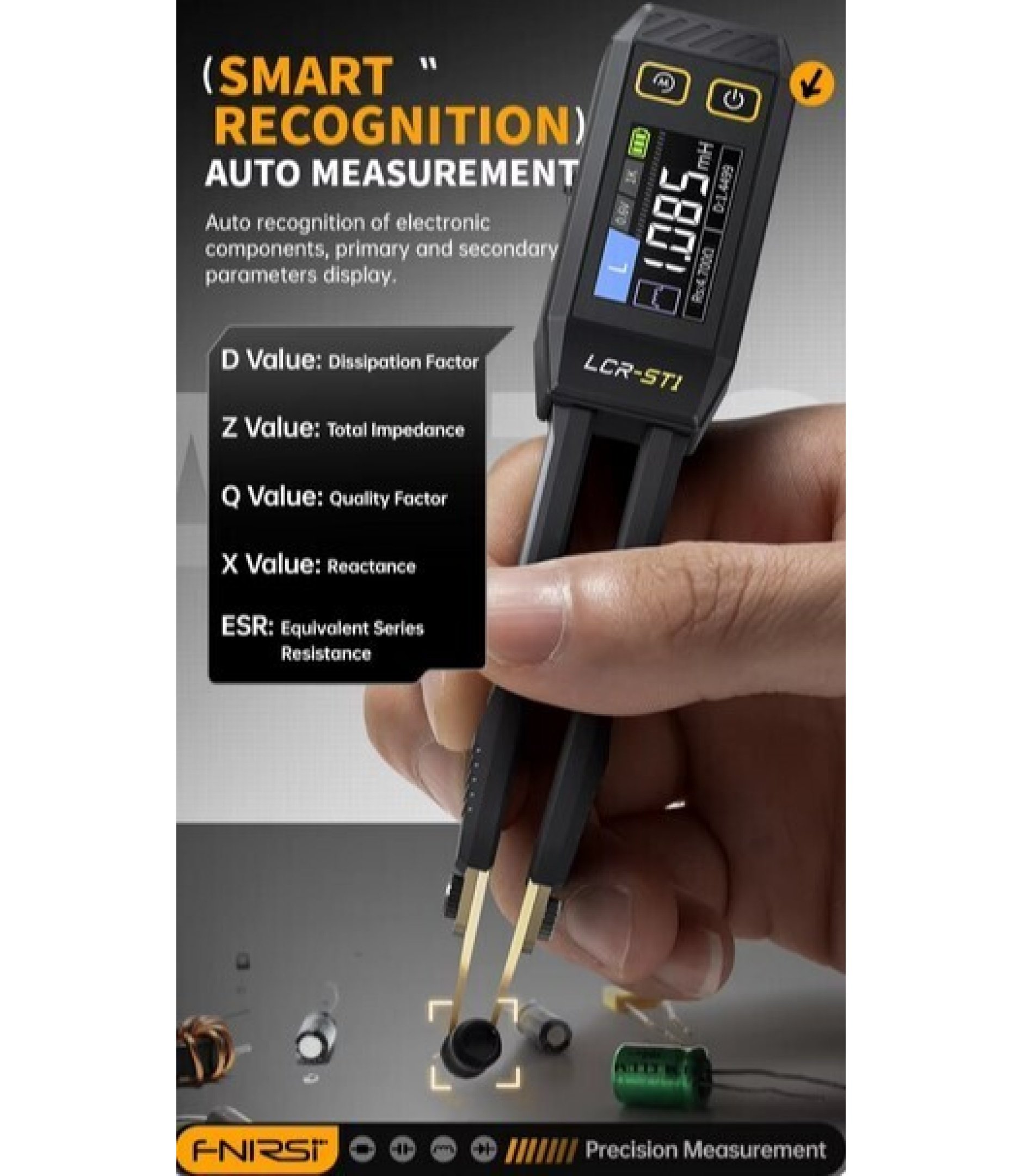

Parameter display: ESR, D value, Q value, Z value, X value
Display: 1.14” color screen
Charging Interface: Type-C, 5V/A
Power Supply: 250mAh lithium battery
Data hold: Support
Auto shutdown: Support

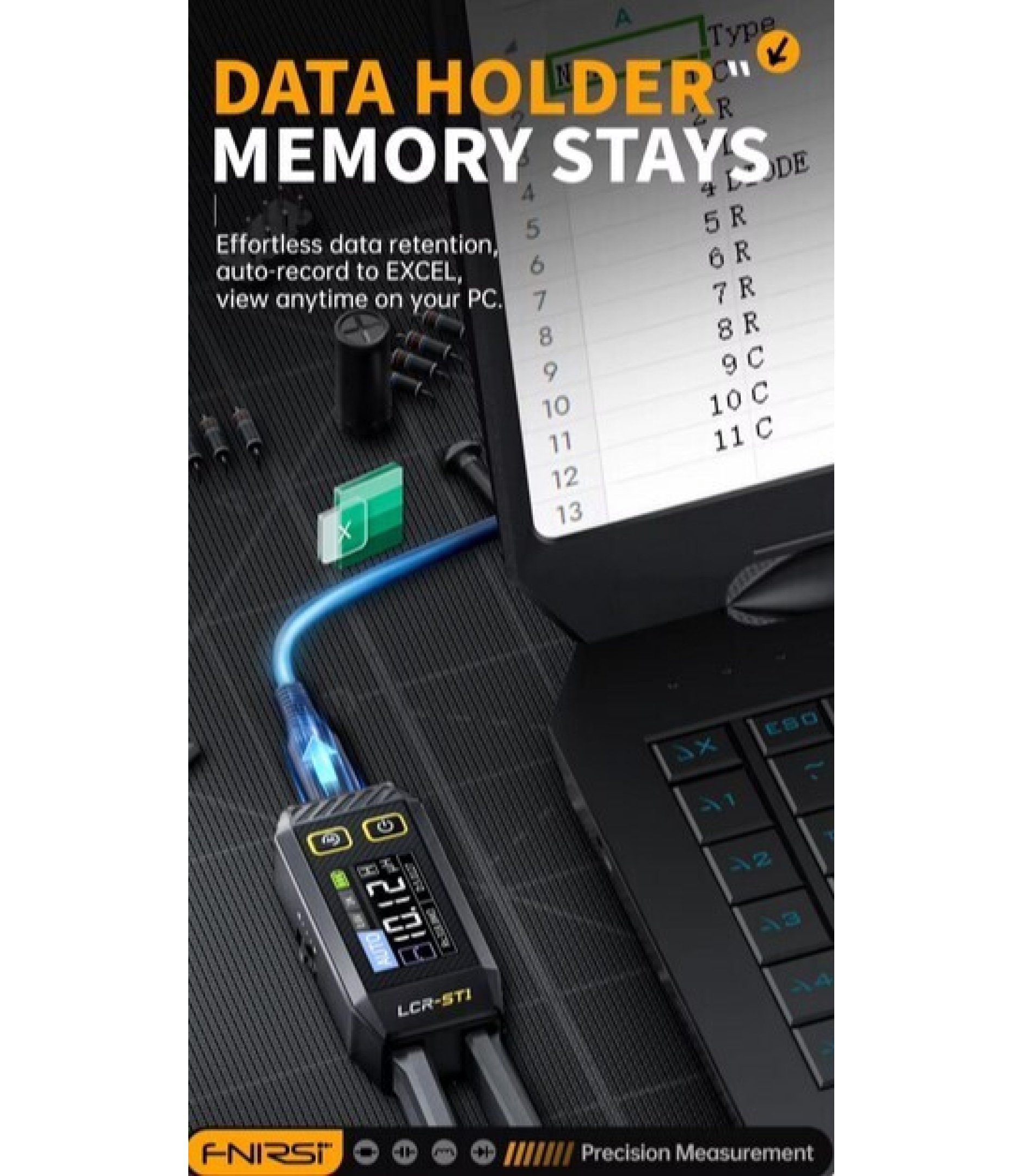

History record: Connect to PC to view and export
Size: 28×19×150mm
NOT INCLUDE BATTERY
