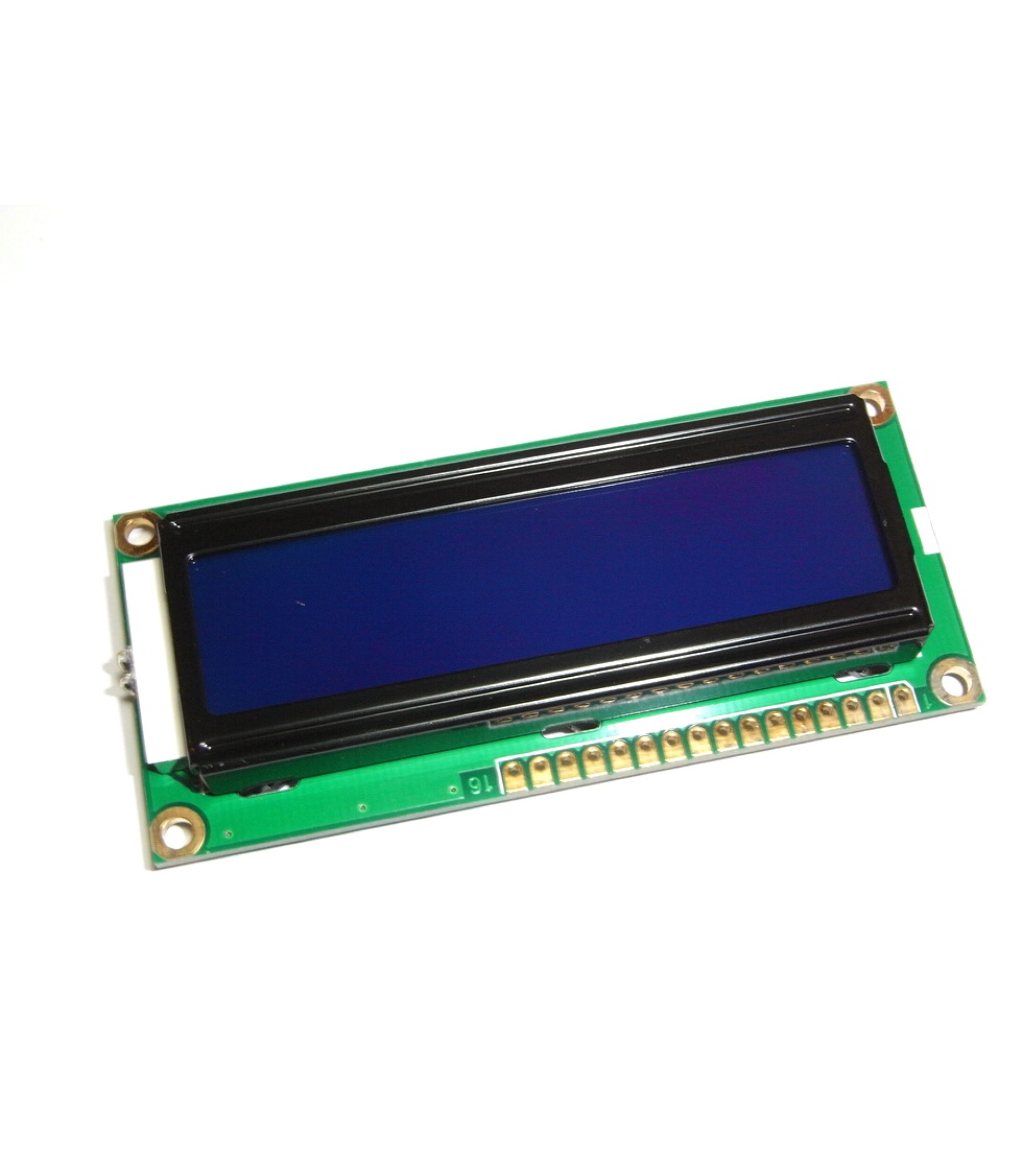

LCD Display 16 x 2 Blue Character with Backlight — electronic component
LCD Display 16 x 2 Blue Character with Backlight — electronic component。售价 2.49 USD，当前有货，SKU NULL，归类于 Uncategorized，页面可抽取 6 项量化参数。
- SKU
- NULL
- Price
- 2.49 USD
- Stock
- 有货
- Category
- Uncategorized
适用场景 (Applicable scenarios)
- electronic component 的整机配套、维修替换或批量采购
核心参数 (Core specifications)
- 价格 / Price：2.49 USD
- Display Format：16 x 2
- Charachter Format：5 x 7
- Character Size：2.96 x 5.56mm
- Viewing Area：64.5 x 12.2mm
- 10.0mA
- 9.45mA
竞品对比 (Competitor comparison)
- 本站现价 2.49 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 6 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
LCD Display 16 x 2 Blue Character with Backlight 多少钱？ / How much does it cost?
LCD Display 16 x 2 Blue Character with Backlight 现价 2.49 USD，库存状态：有货。
LCD Display 16 x 2 Blue Character with Backlight 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
LCD Display 16 x 2 Blue Character with Backlight 的核心参数有哪些？ / What are the key specifications?
Display Format：16 x 2；Charachter Format：5 x 7；Character Size：2.96 x 5.56mm；Viewing Area：64.5 x 12.2mm；10.0mA；9.45mA。
LCD Display 16 x 2 Blue Character with Backlight 属于哪个类目？ / Which category is it in?
类目：Uncategorized。
LCD Display 16 x 2 Blue Character with Backlight 适合哪些使用场景？ / What is it used for?
electronic component 相关场景：electronic component 的整机配套、维修替换或批量采购。
Product Category: LCD Displays
LCD Type: STN
LCD Color: STN Blue Mode Yellow-Green
Display Format: 16 x 2
Charachter Format: 5 x 7
Character Size: 2.96 x 5.56mm
Viewing Area: 64.5 x 12.2mm
Datasheet: Click Here
This LCD screen has a standard 16 pins and includes a resistor between pins 15 and 16 for the backlight.
It is advisable to get a 10K Ohm Potentiometer which you can find here.
This will allow you to adjust the contrast of the characters so you can actually see them.
This LCD screen displays 2 rows of 16 columns and is intended as a character display. It is easily wired up and wiring examples for an Arduino Uno R3 and an Arduino Nano are shown below as well.
Hooked up to an Arduino Nano which can be found here.
Here you can see if hooked up to an Arduino Uno R3. The pins are all the same. The Arduino Uno R3 is available here.
There is a really easy to use example in the Arduino IDE available under Examples -> LiquidCrystal -> HelloWorld Which will simply display Hello World on the top row and count in seconds on the bottom row.
The final wiring should be for each of the boards. LCD Screen
Pin 1 -> Gnd
Pin 2 -> 5V
Pin 3 -> Output of 10K Ohm Linear Pot
Pin 4 -> Digital Pin 7
Pin 5 -> Gnd
Pin 6 -> Digital Pin 8
Pin 11 -> Digital Pin 9
Pin 12 -> Digital Pin 10
Pin 13 -> Digital Pin 11
Pin 14 -> Digital Pin 12
Pin 15 -> 5V
Pin 16 -> Gnd
We wired it up a little different so you must change this line from:
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
to
LiquidCrystal lcd(7, 8, 9, 10, 11, 12);
This defines which pins the LiquidCrystal Library uses. Then select your board, verify your sketch and upload.
More Information
Same Spec Items
–
SKU
A-1748
Manufacturer
100 Electronics
MPN
HXF1602D1
Can be used with
–
Customer Ratings
5/5
Based on 1 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Write a review
Price
Quality
Value
Oct 29, 2014
Nice display but needs better documentaxn
To obtain contrast control on V0 (pin 3), solder over J2 jumper on reverse of board.
Follow the tutorial given at http://arduino.cc/en/Tutorial/LiquidCrystal and everything should be good.
Note that the datasheet provided for this display contains a typo in last line of Table 2, where If should be reported as 10.0mA. I measure 9.45mA in my situation.
A forum thread regarding this display is found at: http://forum.arduino.cc/index.php?topic=275130.0
