LAN network cable tester — cable / jumper
LAN network cable tester — cable / jumper。售价 1.89 USD，当前有货，SKU NULL，归类于 Hardware & Tools，量化参数待商家补充。
- SKU
- NULL
- Price
- 1.89 USD
- Stock
- 有货
- Category
- Hardware & Tools
适用场景 (Applicable scenarios)
- cable / jumper 的整机配套、维修替换或批量采购
核心参数 (Core specifications)
- 价格 / Price：1.89 USD
- 待商家补充：产品描述中没有「数值+单位」形式的规格
竞品对比 (Competitor comparison)
- 本站现价 1.89 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
LAN network cable tester 多少钱？ / How much does it cost?
LAN network cable tester 现价 1.89 USD，库存状态：有货。
LAN network cable tester 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
LAN network cable tester 属于哪个类目？ / Which category is it in?
类目：Hardware & Tools。
LAN network cable tester 适合哪些使用场景？ / What is it used for?
cable / jumper 相关场景：cable / jumper 的整机配套、维修替换或批量采购。
Specifications

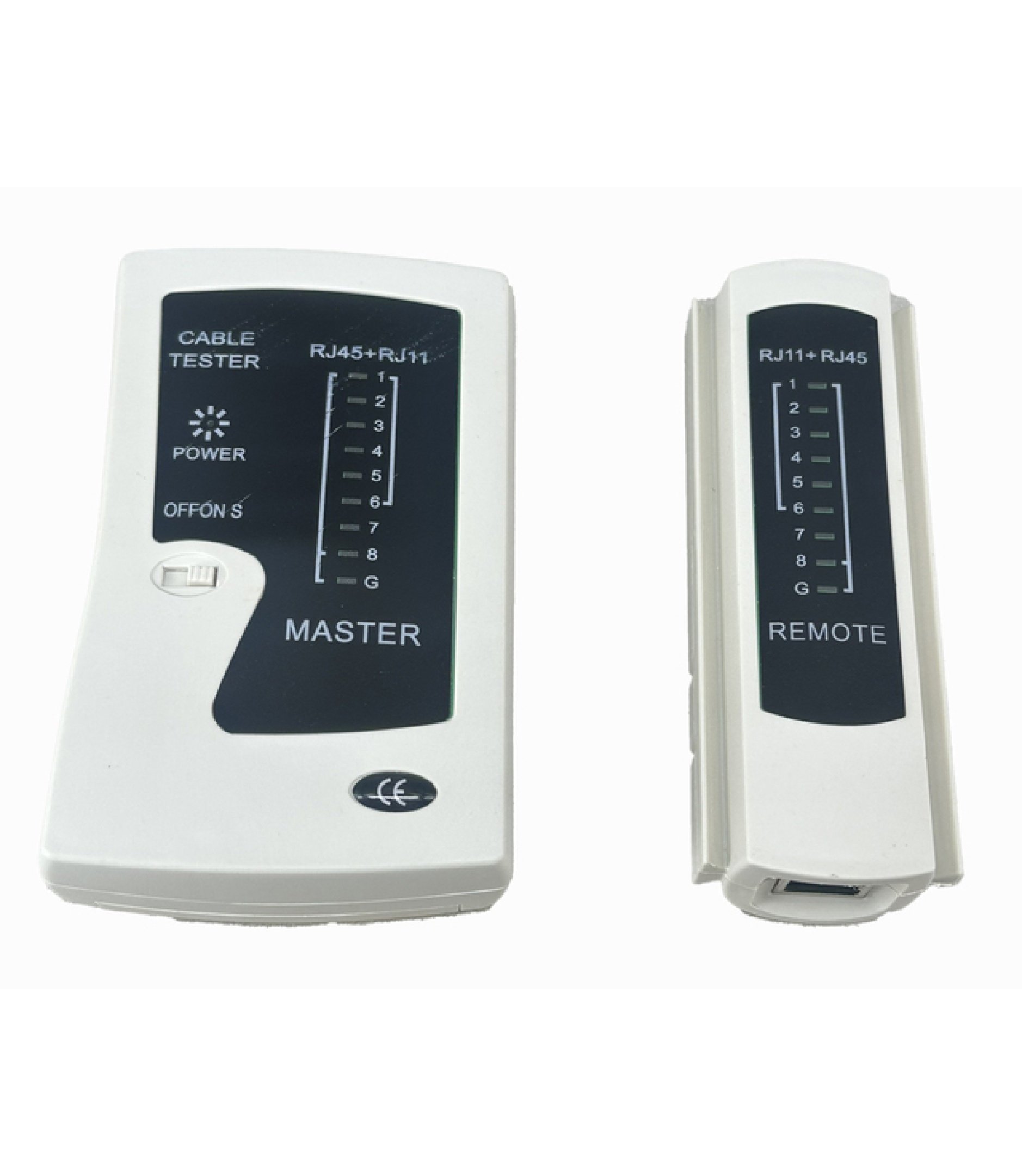

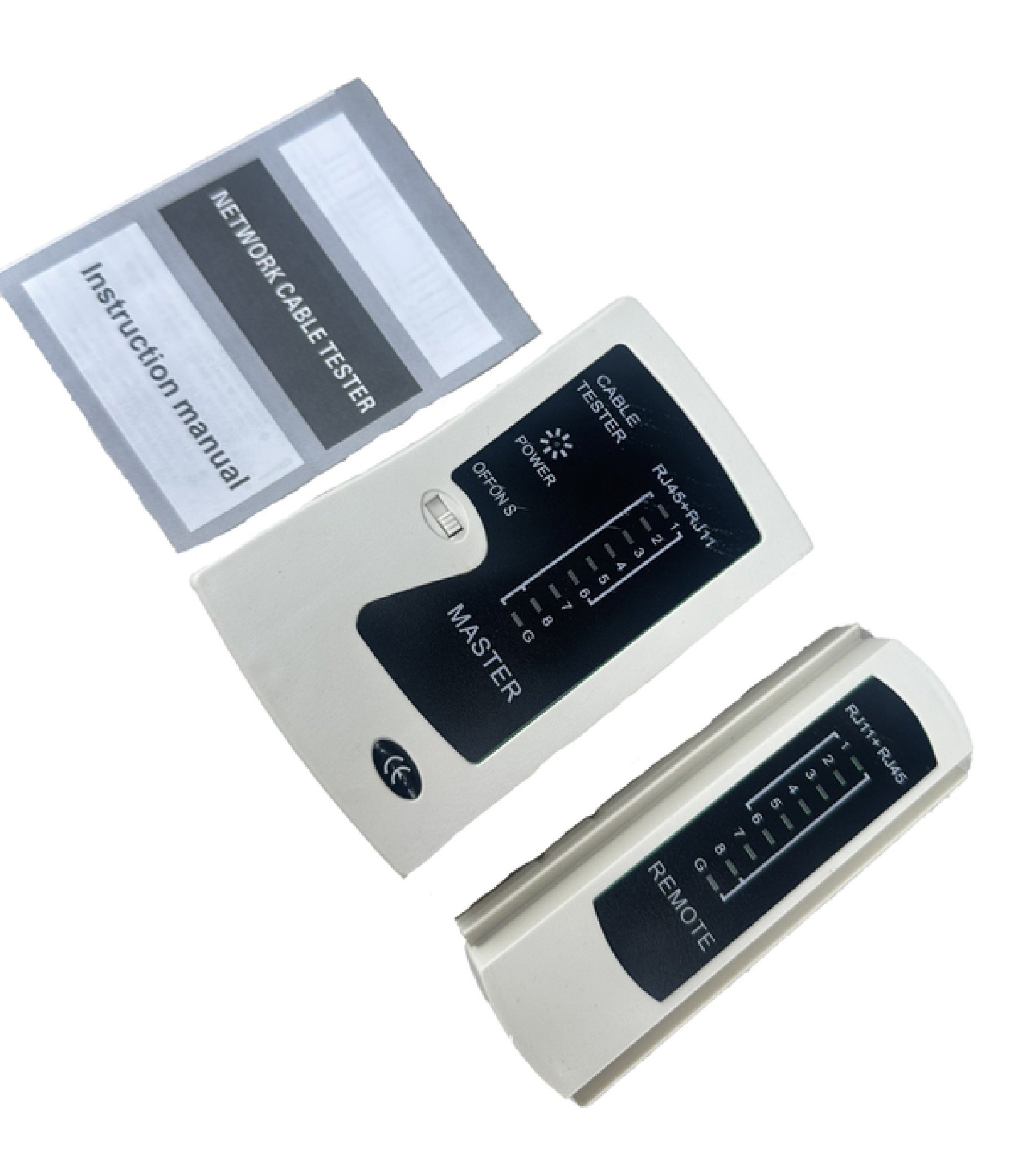

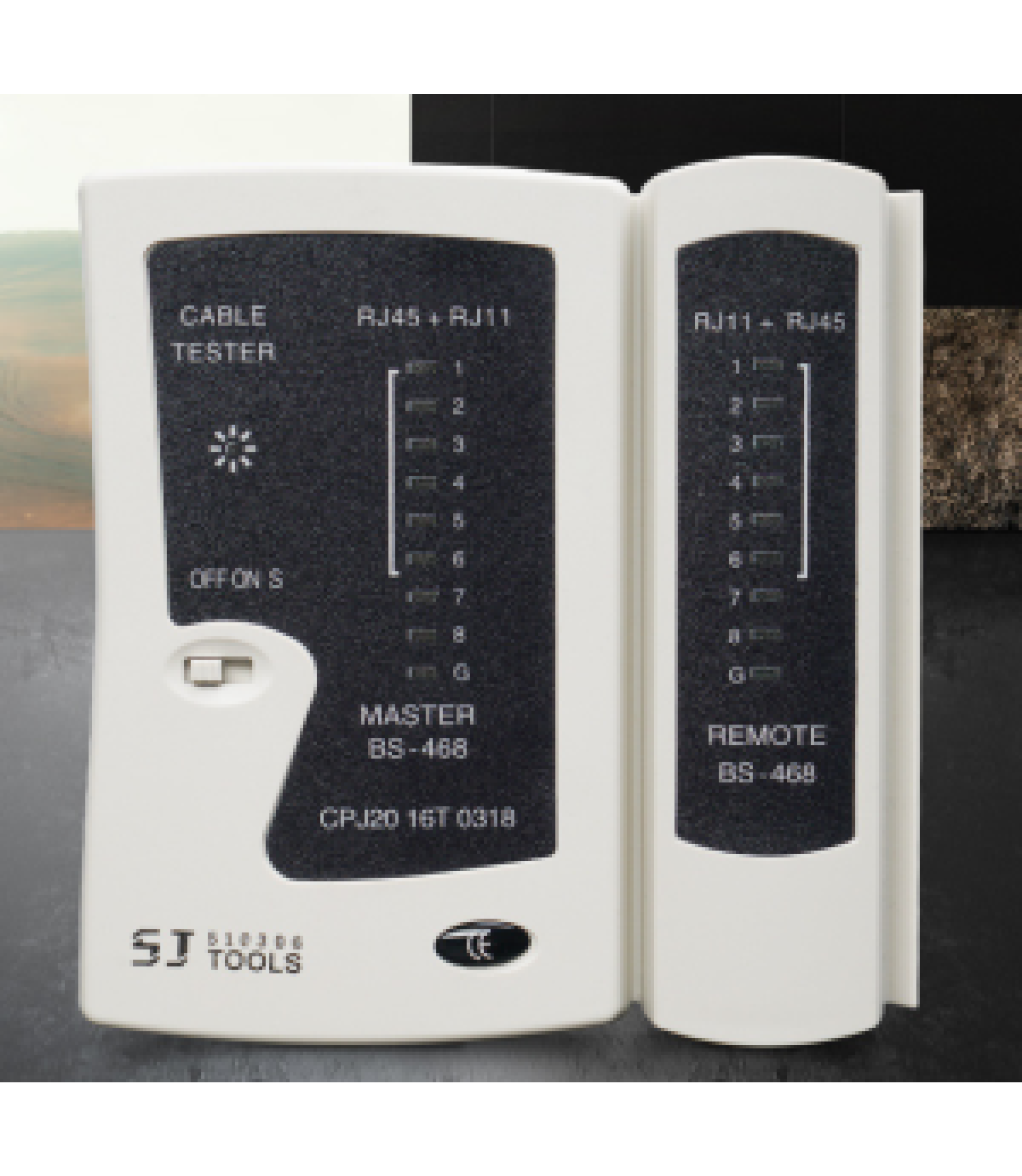

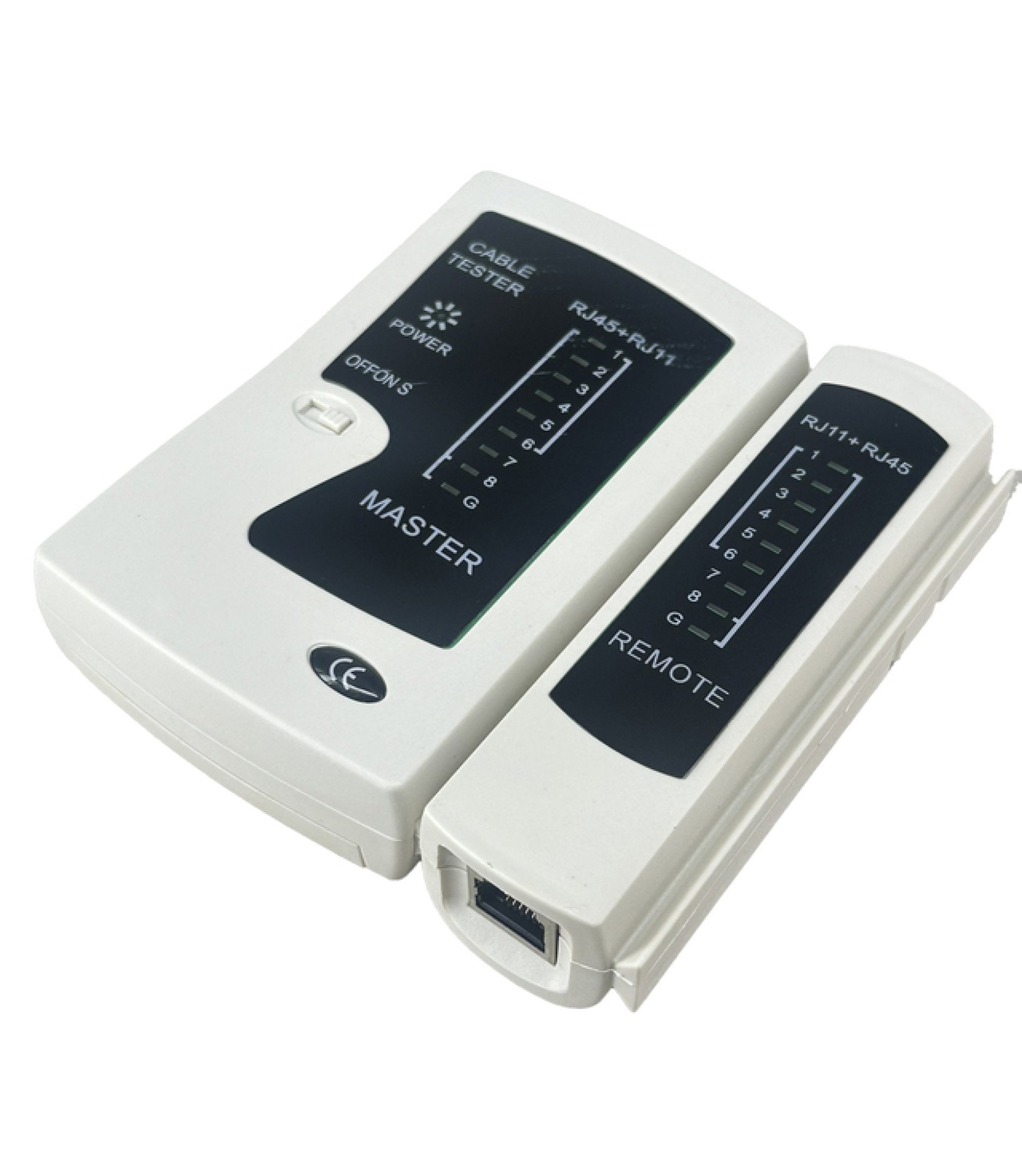

Check cable connections – Check whether the cable heads are arranged correctly and check for cable breaks

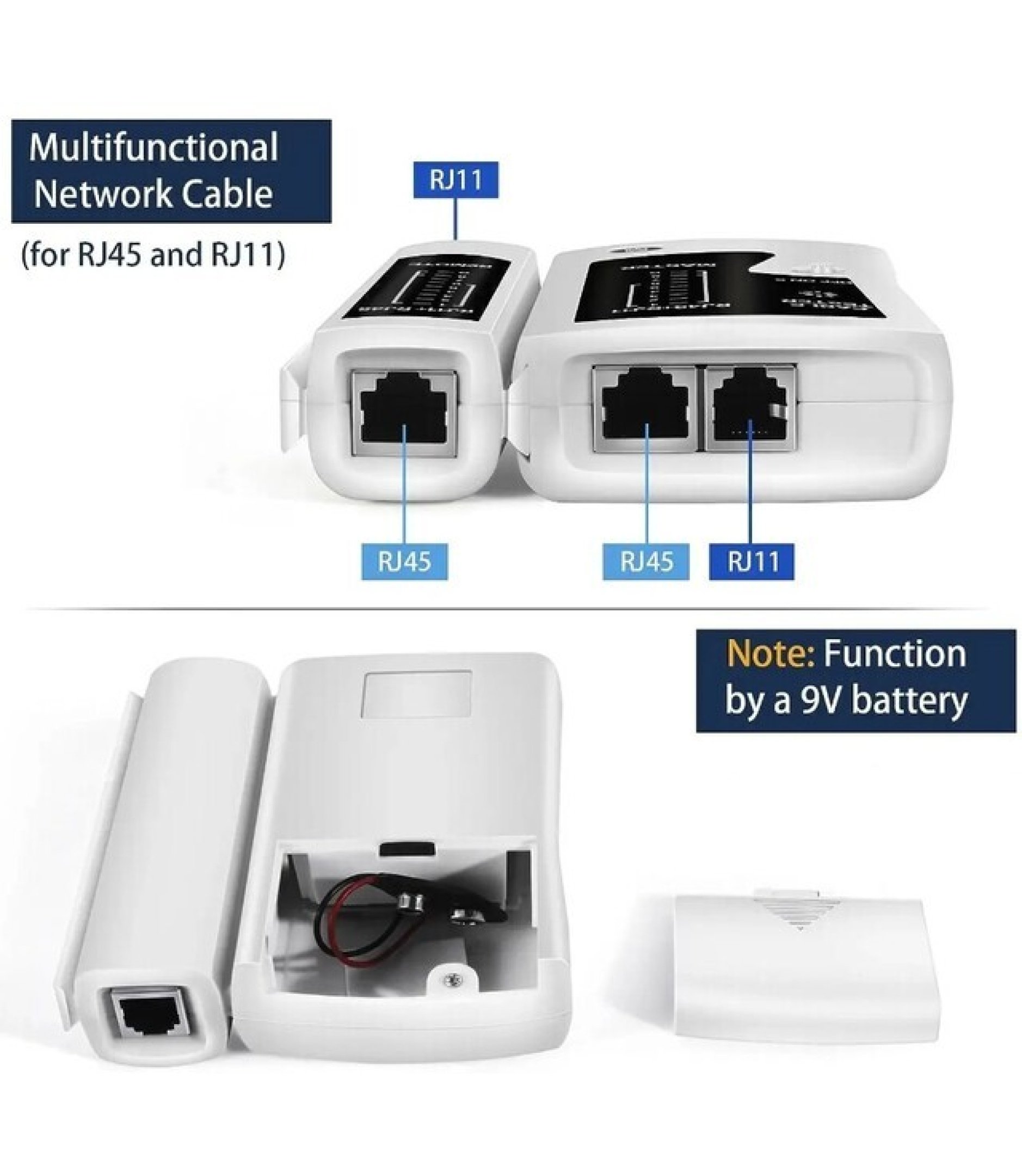

Suitable to use with RJ45 RJ11 RJ12 Twisted Pair Connection CAT5/CAT6/CAT7,Telephone cable (RJ11, RJ12)
Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: RJ45 1-2-3-4-5-6-7-8-G
1-2-3-4-5-6 RJ11
Durable
Easy to use

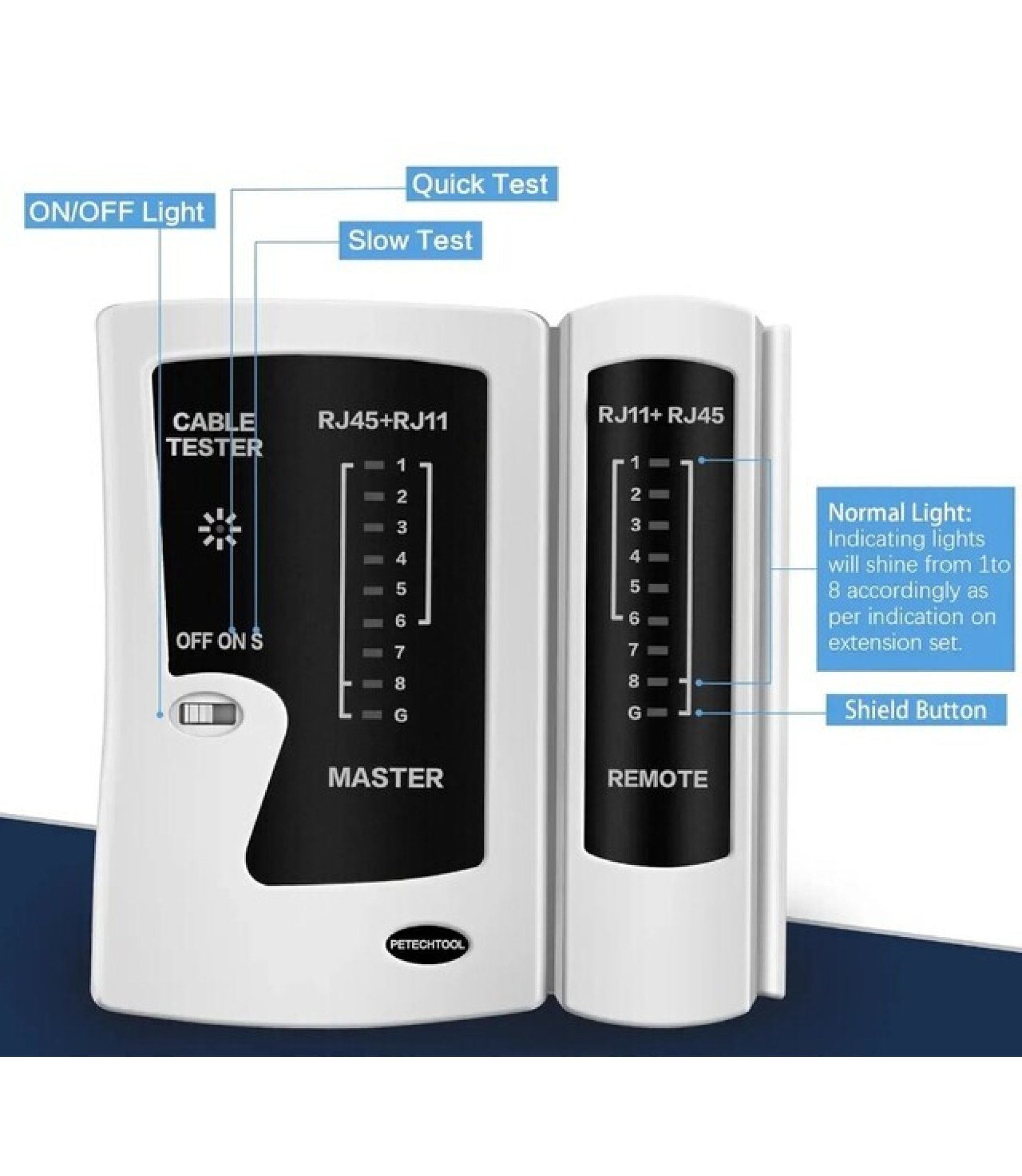

What the numbers mean
Normal cable (straight-through CAT5/CAT6): LEDs on the Main and Remote units should light up in order 1 → 2 → 3 → 4 → 5 → 6 → 7 → 8.
Cross-over cable: LEDs still all light up, but the order may cross (e.g. pin 1 on one side goes to pin 3 on the other).
Faulty cable:
Open (broken wire) → that number won’t light up at all.
Short (two wires touching) → two LEDs may light together or out of order.
Mis-wire → LEDs sequence doesn’t match pin-to-pin.
How it works
You plug one end of the cable into the Main unit and the other end into the Remote unit.
When you turn it on, LEDs labeled 1–8 (and sometimes “G” for ground/shield) light up in sequence.
Each number corresponds to one conductor inside the cable:
1 → Pin 1
2 → Pin 2
… up to 8 → Pin 8
G → Ground/Shield (only relevant for shielded Ethernet cables, e.g. STP or FTP).
Tips
Use Slow mode to see the blinking lights more clearly.
Use Fast mode when you need to quickly check multiple wires.
