L9110S Motor Driver 12V 800mA — PCBs – Breakout Boards – DIY Kits
L9110S Motor Driver 12V 800mA — PCBs – Breakout Boards – DIY Kits。售价 0.99 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 5 项量化参数。
- SKU
- NULL
- Price
- 0.99 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机整机装机与备件替换
核心参数 (Core specifications)
- 价格 / Price：0.99 USD
- Data Voltage：5v
- Motor Voltage：2.5-12v
- Motor Current：800mA Continuous
- Compatible Motors：4 wire stepper motors, or
- 40mA
竞品对比 (Competitor comparison)
- 本站现价 0.99 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 5 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
L9110S Motor Driver 12V 800mA 多少钱？ / How much does it cost?
L9110S Motor Driver 12V 800mA 现价 0.99 USD，库存状态：有货。
L9110S Motor Driver 12V 800mA 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
L9110S Motor Driver 12V 800mA 的核心参数有哪些？ / What are the key specifications?
Data Voltage：5v；Motor Voltage：2.5-12v；Motor Current：800mA Continuous；Compatible Motors：4 wire stepper motors, or；40mA。
L9110S Motor Driver 12V 800mA 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
L9110S Motor Driver 12V 800mA 适合哪些使用场景？ / What is it used for?
PCBs – Breakout Boards – DIY Kits 相关场景：无人机整机装机与备件替换。

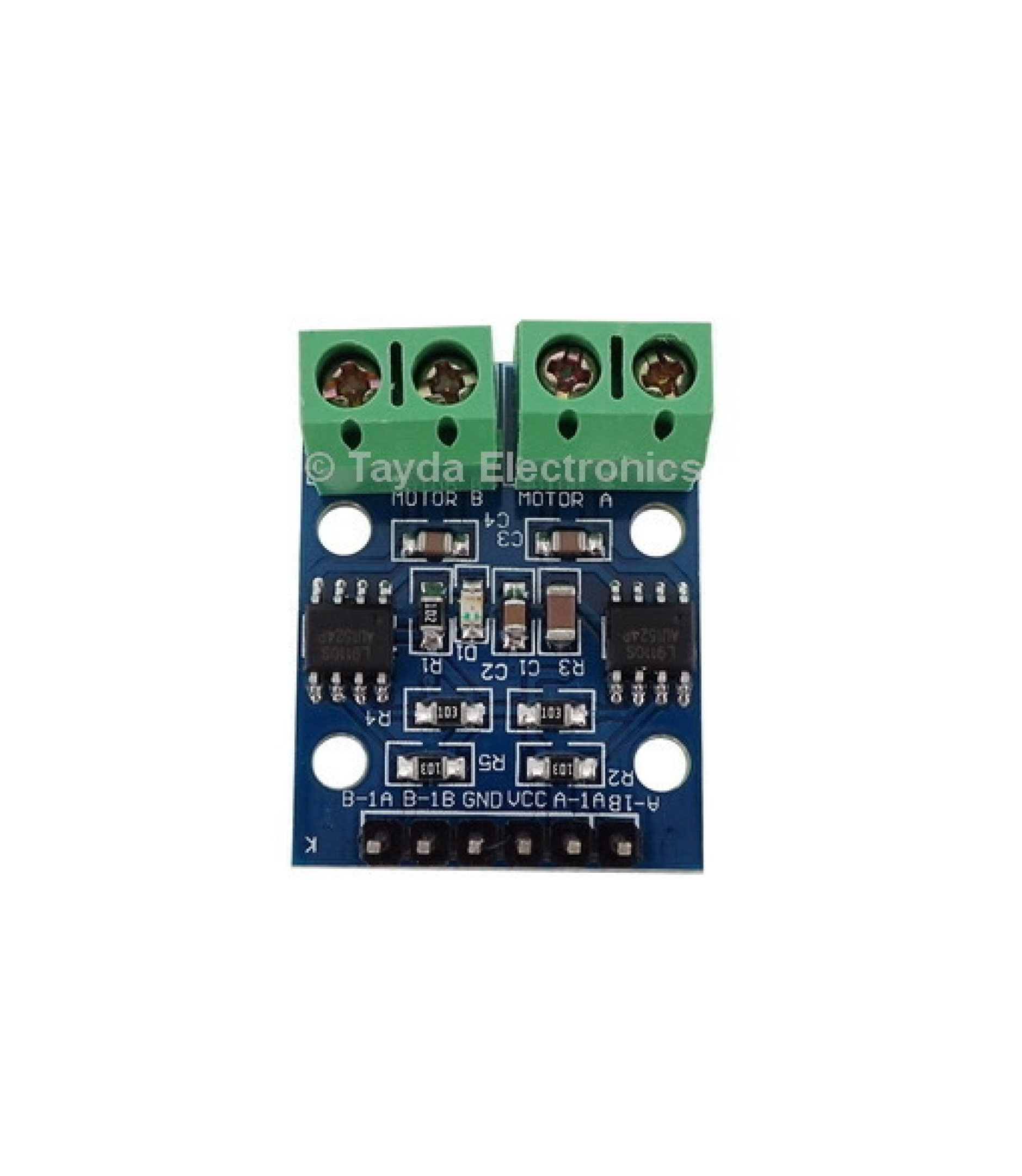

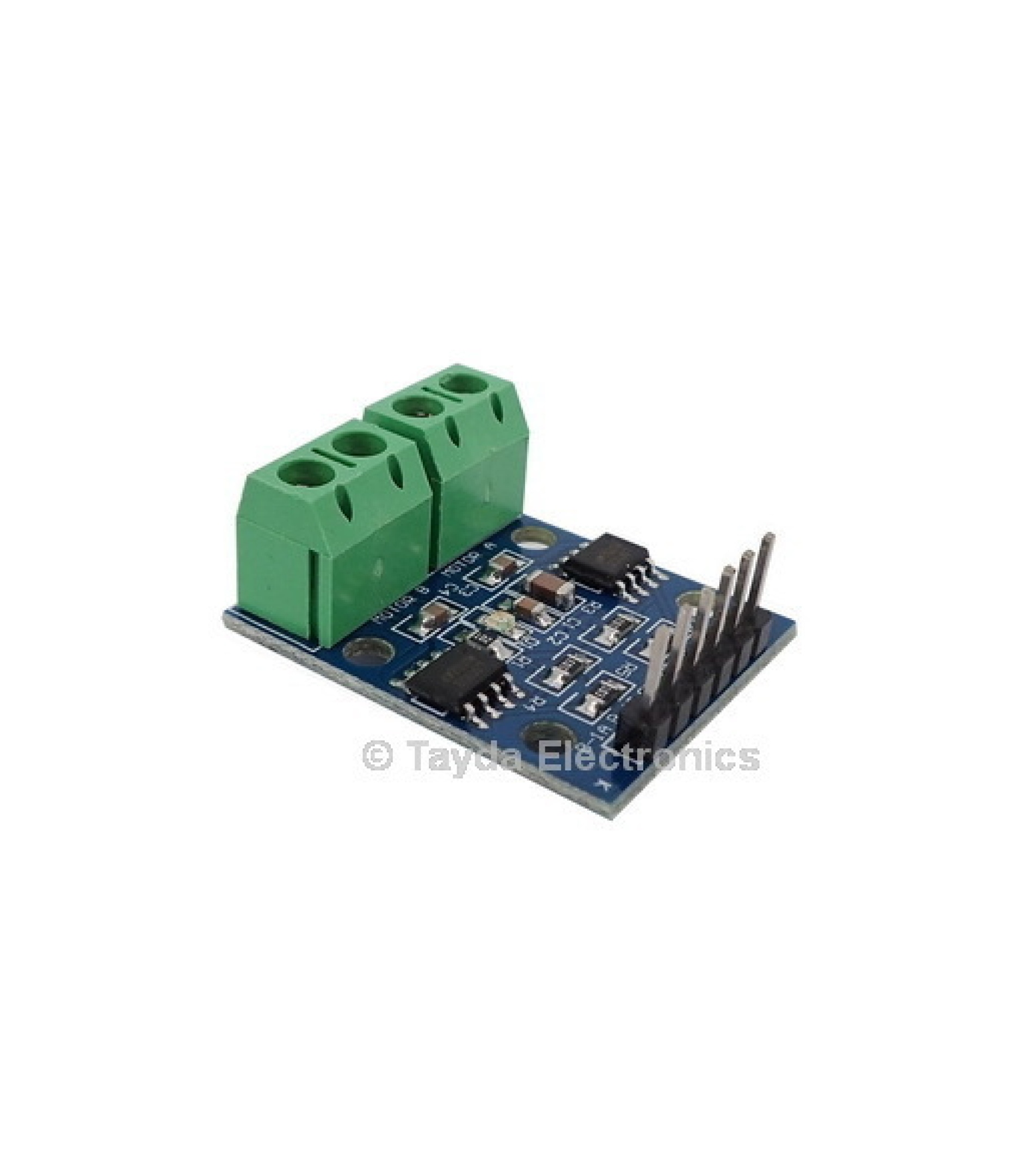

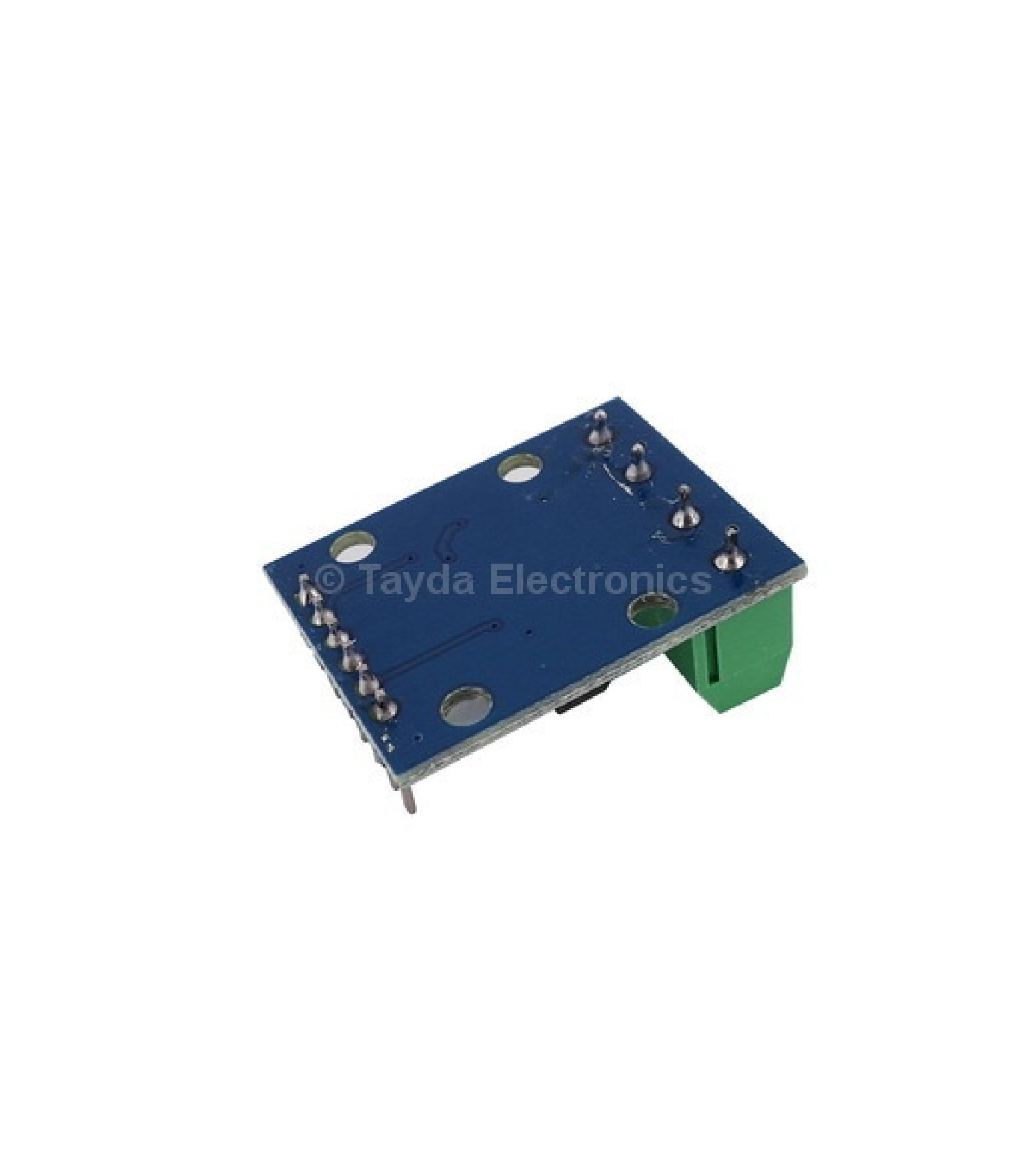

L9110S Motor Driver/H-Bridge
Driver IC: A3967
Data Voltage: 5v
Motor Voltage: 2.5-12v
Motor Current: 800mA Continuous
Compatible Motors: 4 wire stepper motors, or DC Motors (Replacement board for servos anyone?!)
Datasheet (L9110S): Click Here
This board is very easy to use and wire. Note the reason to use a motor driver is two fold. First, it allows the use of a PWM signal from the Arduino to be transformed into either direction or speed. Second, it allows you to draw much more current then available from an Arduino (only about 40mA from an individual pin). So you need to power this board from a separate power supply as well as powering your Arduino. The power supply can be from the same source, but the L9110S needs to be wired straight to the battery or other power supply. A simple wiring example is shown below.
A simple sketch showing some of the behavior that is possible using the L9110S is available here.
More Information
Same Spec Items
–
SKU
A-2855
Manufacturer
100 Electronics
MPN
L9110S
Can be used with
–
