INMP441 Omnidirectional Microphone I2S Interface Module — module / board
INMP441 Omnidirectional Microphone I2S Interface Module — module / board。售价 1.59 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 4 项量化参数。
- SKU
- NULL
- Price
- 1.59 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机载荷：航拍、测绘、气体检测与巡检
- 无人机整机装机与备件替换
- 遥控链路与图传系统
核心参数 (Core specifications)
- 价格 / Price：1.59 USD
- Input Voltage：1.8V to 3.3V
- 1.4 mA
- 60 Hz
- 15 kHz
竞品对比 (Competitor comparison)
- 本站现价 1.59 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 4 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
INMP441 Omnidirectional Microphone I2S Interface Module 多少钱？ / How much does it cost?
INMP441 Omnidirectional Microphone I2S Interface Module 现价 1.59 USD，库存状态：有货。
INMP441 Omnidirectional Microphone I2S Interface Module 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
INMP441 Omnidirectional Microphone I2S Interface Module 的核心参数有哪些？ / What are the key specifications?
Input Voltage：1.8V to 3.3V；1.4 mA；60 Hz；15 kHz。
INMP441 Omnidirectional Microphone I2S Interface Module 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
INMP441 Omnidirectional Microphone I2S Interface Module 适合哪些使用场景？ / What is it used for?
module / board 相关场景：无人机载荷：航拍、测绘、气体检测与巡检、无人机整机装机与备件替换、遥控链路与图传系统。

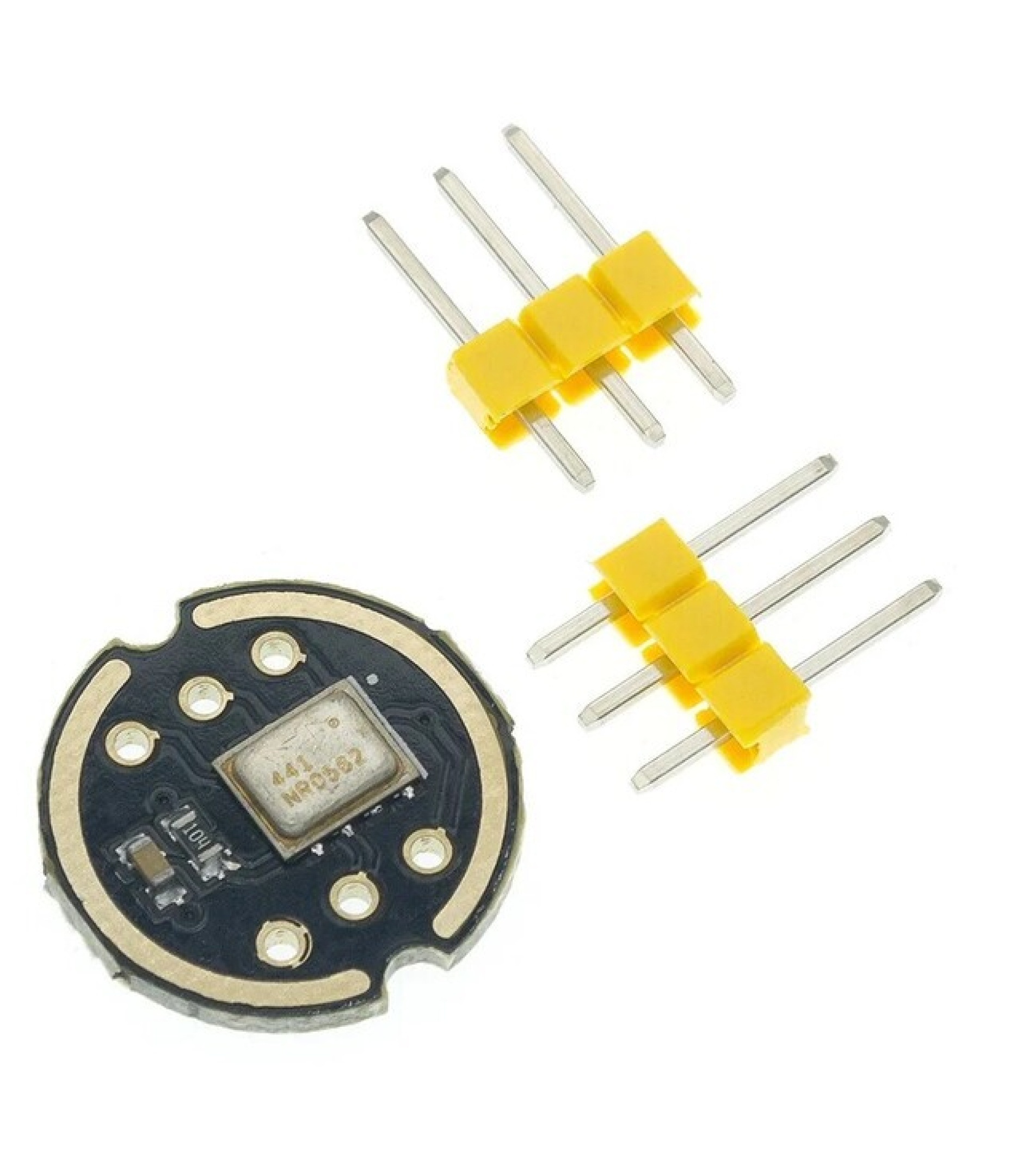

The INMP441 is a high performance, low power, digital output, omnidirectional MEMS microphone with bottom port. The The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, power management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be directly connected to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system. The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.
Specifications
Input Voltage: 1.8V to 3.3V
Low current consumption 1.4 mA
Stable frequency response from 60 Hz to 15 kHz
High PSR: -75 dBFS
High sensitivity – 26 dBFS
High signal to noise ratio is 61 dBA
Digital I2S interface with high precision 24-bit data

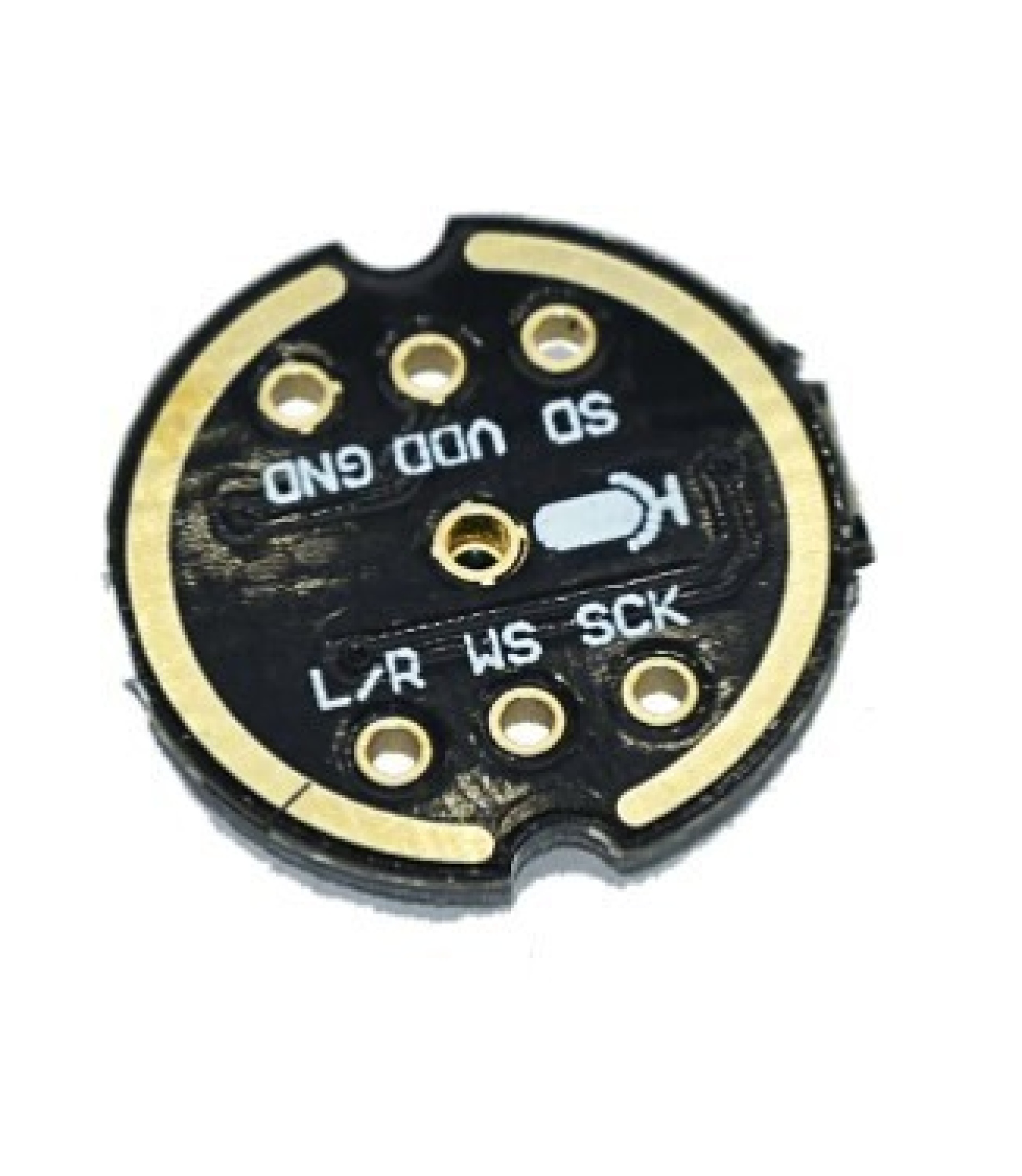

Connect to ESP32: INMP441 ESP32
SCK to GPIO14
SD to GPIO32
WS to GPIO15
L/R to GND
GND to GND
VDD to VDD3.3
