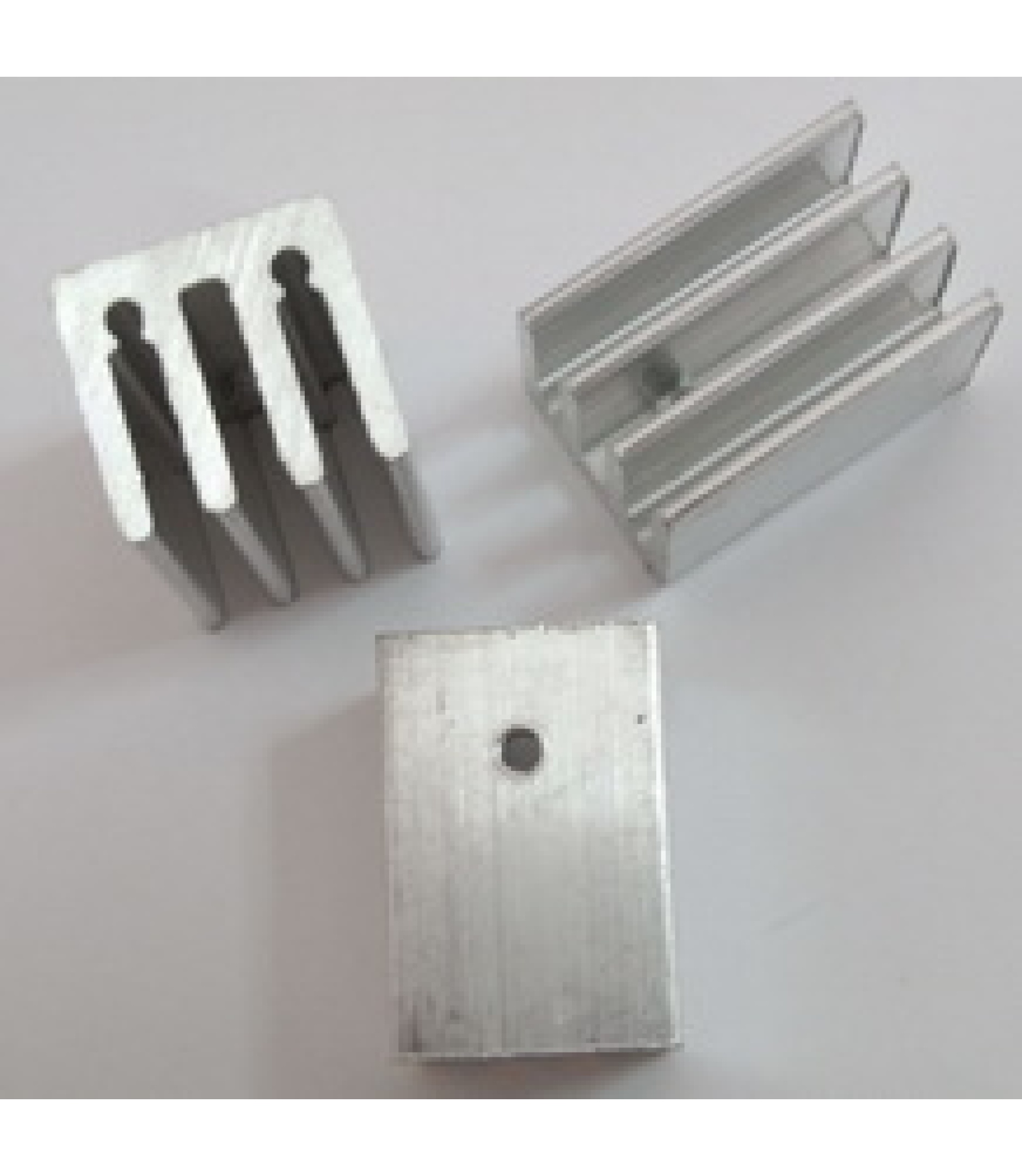

Heatsink TO-220 4 Fins Aluminium — Hardware & Tools
Heatsink TO-220 4 Fins Aluminium — Hardware & Tools。售价 0.24 USD，当前有货，SKU NULL，归类于 Hardware & Tools，页面可抽取 6 项量化参数。
- SKU
- NULL
- Price
- 0.24 USD
- Stock
- 有货
- Category
- Hardware & Tools
适用场景 (Applicable scenarios)
- Hardware & Tools 的整机配套、维修替换或批量采购
核心参数 (Core specifications)
- 价格 / Price：0.24 USD
- Thread hole Pitch：0.5mm
- Weight：10.35 g
- Length x Width x Fin Height：26 x 17 x 17 mm
- Mounting Hole Location：7.5 mm from end
- Thermal Resistance Forced Air Flow：4°C/W
- 17.5°C
竞品对比 (Competitor comparison)
- 本站现价 0.24 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 6 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
Heatsink TO-220 4 Fins Aluminium 多少钱？ / How much does it cost?
Heatsink TO-220 4 Fins Aluminium 现价 0.24 USD，库存状态：有货。
Heatsink TO-220 4 Fins Aluminium 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
Heatsink TO-220 4 Fins Aluminium 的核心参数有哪些？ / What are the key specifications?
Thread hole Pitch：0.5mm；Weight：10.35 g；Length x Width x Fin Height：26 x 17 x 17 mm；Mounting Hole Location：7.5 mm from end；Thermal Resistance Forced Air Flow：4°C/W；17.5°C。
Heatsink TO-220 4 Fins Aluminium 属于哪个类目？ / Which category is it in?
类目：Hardware & Tools。
Heatsink TO-220 4 Fins Aluminium 适合哪些使用场景？ / What is it used for?
Hardware & Tools 相关场景：Hardware & Tools 的整机配套、维修替换或批量采购。
Suits TO-220 Devices
Small Compact Size
Thread hole size: M3
Thread hole Pitch: 0.5mm
Excellent Heat Dissipation
Dimensions:
Length – 17mm
Width – 17mm
Height – 26mm
More Information
Same Spec Items
–
SKU
A-5093
Manufacturer
100 Electronics
MPN
Heatsink TO-220 4 Fins Aluminium
Can be used with
–
Customer Ratings
4.9/5
Based on 10 reviews
5 Stars
27
4 Stars
3
3 Stars
0
2 Stars
0
1 Star
0
Write a review
Price
Quality
Value
Feb 3, 2014
Quality product
The item has no manufacturer or part number marked on it but it is a quality product.
It is basically an aluminum extrusion with saw cut ends and tapped hole.
The saw cuts are ‘raw’ but not unreasonably sharp and do not have a burr.
The rear heat transfer surface is reasonable flat but can be enhanced by lapping. To do this rub it across a piece of fine sandpaper on a flat surface until the entire surface shines.
The hole is tapped for an M3x.5 screw. I used the a mounting screw from an old computer CDROM and it worked great.
There was a slight burr on the edge of the hole down between the fins. I used a razor knife to remove it to avoid the off chance of it flaking off later and causing a short.
The heatsink is 26mm long x 17mm wide x17mm tall (fin side). The base is 2.5MM thick, the fins are 1.5MM thick. The hole is on center line between the fins and 7.5MM from the top. The unit weighs 10g (0.4oz) (without a screw).
With the screw in it is just the right height to allow the legs to push through into your PCB or breadboard. If you use it with your breadboard be sure to leave an air gap underneath to avoid transferring the heat to the plastic.
I am using it to cool a 7805 Vreg and it works great.
Overall I would buy it again and would recommend it to a friend.
Penname
Price
Quality
Value
Jun 18, 2013
good value
adorable little heatsinks at a pretty fair price
Kris
Price
Quality
Value
Jun 15, 2013
Can use #4-40 machine screws
Work great with TO220 packages
Ted W
Price
Quality
Value
May 16, 2013
Recommended Product -> Specs
These are great quality and the price is right.
Specs:
Weight: 10.35 g
Length x Width x Fin Height: 26 x 17 x 17 mm
Mounting Hole Location: 7.5 mm from end
Mounting Hole: M3 Thread, standard pitch
Recommended Mounting Screw: M3x5
Thermal Resistance Natural Convection: 17.5°C/W
Thermal Resistance Forced Air Flow: 4°C/W
Nicholas
Price
Quality
Value
Dec 8, 2012
Great, but how many C/W?
Have used these very nicely on LM350s, but would love to know their thermal resistance rating.
Robert
Price
Quality
Value
Sep 15, 2012
Awesome
Great price for even better product
David
