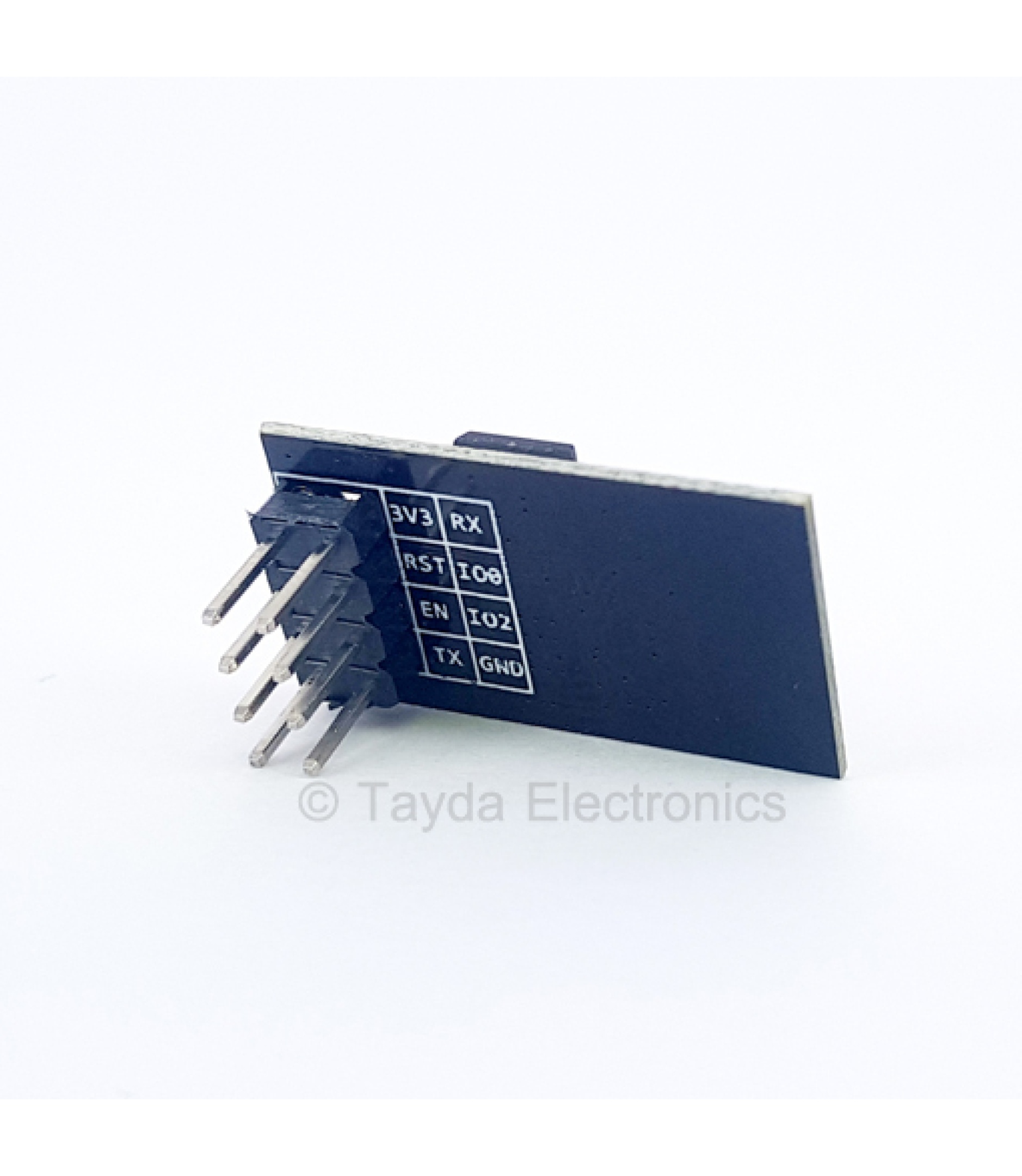

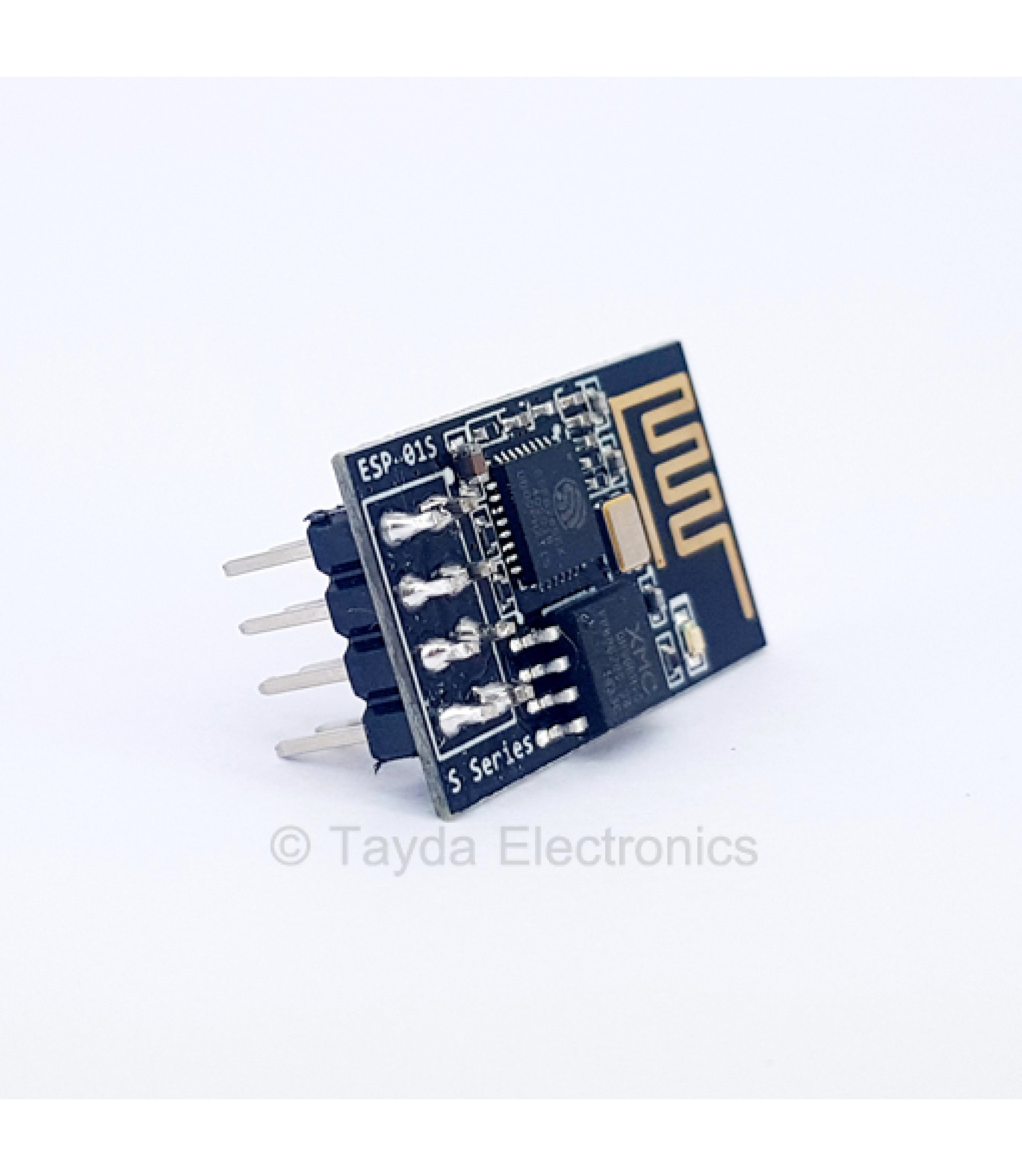

ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash — cable / jumper
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash — cable / jumper。售价 4.33 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 3 项量化参数。
- SKU
- NULL
- Price
- 4.33 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 无人机载荷：航拍、测绘、气体检测与巡检
- 无人机整机装机与备件替换
- 遥控链路与图传系统
核心参数 (Core specifications)
- 价格 / Price：4.33 USD
- Wireless Standard：802.11 b/g/n
- Frequency Range：2.4GHz-2.5GHz(2400M-2483.5
- Working Voltage：3.3V
竞品对比 (Competitor comparison)
- 本站现价 4.33 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 3 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 多少钱？ / How much does it cost?
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 现价 4.33 USD，库存状态：有货。
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 的核心参数有哪些？ / What are the key specifications?
Wireless Standard：802.11 b/g/n；Frequency Range：2.4GHz-2.5GHz(2400M-2483.5；Working Voltage：3.3V。
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
ESP8266EX ESP-01S Wireless Transceiver Module with 1MB Flash 适合哪些使用场景？ / What is it used for?
cable / jumper 相关场景：无人机载荷：航拍、测绘、气体检测与巡检、无人机整机装机与备件替换、遥控链路与图传系统。
Chip Manufacturer: Espressif
Manufacturer Part No: ESP8266EX
Datasheet: Click Here
RoHS: Yes
This is a wifi solution based on IC ESP8266 from Espressif.The ESP8266 wifi module is a self contained SOC with integrated TCP/IP protocal stack that can give any microcontroller access to your WIFI network.
ESP8266 module is of low cost and comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers.This module has a powerful on-board processing and storage capability that allows it to be integrated with the sensors and other application through its GPIOs,they’re so easy to use. You can find an example of code and wiring here: Example
Technical Data:
Model:ESP-01S
1MB Flash size
AP,STA,AP+STA modes available
Wireless Standard:802.11 b/g/n
Safty Mode: WPA/WPA2
Encryption Type: WEP/TKIP/AES
Network Protocal: IPV4,TCP/UDP/HTTP/FTP
Frequency Range: 2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface: UART/SPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Working Voltage: 3.3V
Operating Current: ~80mA
Operating Temperature:-40~+125
