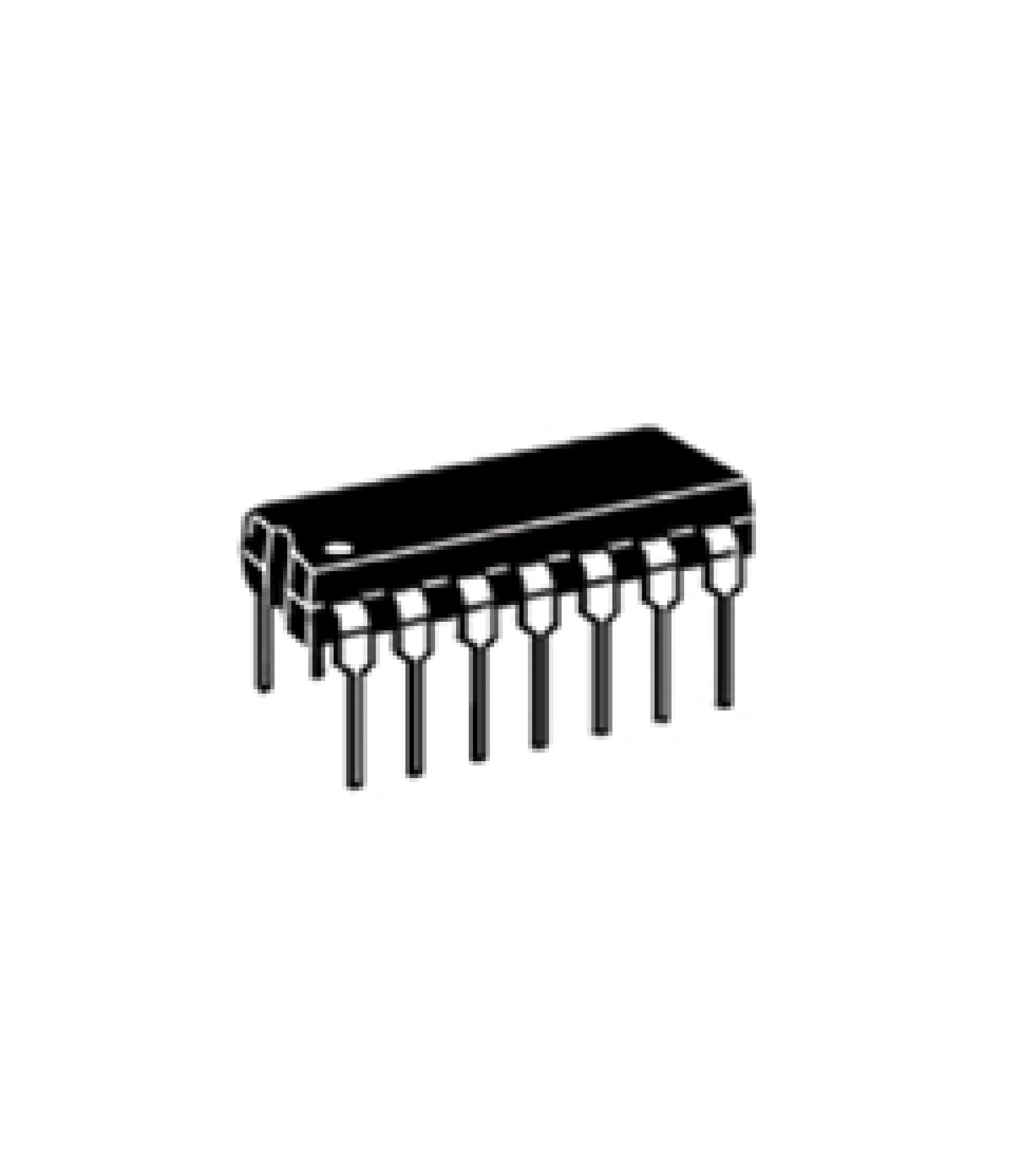

74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC — power component
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC — power component。售价 0.22 USD，当前有货，SKU NULL，归类于 ( IC ) INTEGRATED CIRCUITS，页面可抽取 5 项量化参数。
- SKU
- NULL
- Price
- 0.22 USD
- Stock
- 有货
- Category
- ( IC ) INTEGRATED CIRCUITS
适用场景 (Applicable scenarios)
- 射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路
核心参数 (Core specifications)
- 价格 / Price：0.22 USD
- Low Level Output Current：5.2 mA
- Propagation Delay Time：125 ns @ 2 V or 25 ns @ 4.
- Supply Voltage (Max)：6 V
- Supply Voltage (Min)：2 V
- 4.5 V
竞品对比 (Competitor comparison)
- 本站现价 0.22 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 5 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 多少钱？ / How much does it cost?
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 现价 0.22 USD，库存状态：有货。
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 的核心参数有哪些？ / What are the key specifications?
Low Level Output Current：5.2 mA；Propagation Delay Time：125 ns @ 2 V or 25 ns @ 4.；Supply Voltage (Max)：6 V；Supply Voltage (Min)：2 V；4.5 V。
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 属于哪个类目？ / Which category is it in?
类目：( IC ) INTEGRATED CIRCUITS。
74HC14 7414 HEX SCHMITT INVERTER CMOS TTL IC 适合哪些使用场景？ / What is it used for?
power component 相关场景：射频 / 微波系统集成：测试测量、通信基站、雷达与卫星链路。
A Schmitt Trigger is a comparator circuit with hysteresis. This means that the switching action can occur at different points for a given signal. The Schmitt Trigger retains its output until a large enough signal is received to switch it. This forces switching only on significant voltage changes compared to the rest of the signal. So if you have a noisy signal it will clean the signal in slightly different ways then a traditional comparator.
Figure 1
Here is an example of the Schmitt Trigger handles a slightly noisy signal. U shows the input signal. With A showing a traditional comparator, and B showing a Schmitt Trigger handling the same signal.
Figure 2
Pin out of the 74HC14
Manufacturer: Renesas
Manufacturer Part No: HD74HC14P
Package / Case: PDIP-14
RoHS: Yes
Datasheet: Click Here
Specifications
Product Category: Inverters
Logic Family: HC
Logic Type: CMOS
Number of Circuits: Hex
Output Type: Schmitt Trigger
High Level Output Current: – 5.2 mA
Low Level Output Current: 5.2 mA
Propagation Delay Time: 125 ns @ 2 V or 25 ns @ 4.5 V or 21 ns @ 6 V
Supply Voltage (Max): 6 V
Supply Voltage (Min): 2 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Input Type: Schmitt Trigger
More Information
Same Spec Items
A-030
SKU
A-248
Manufacturer
Renesas
MPN
HD74HC14P
Can be used with
–
