150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module — power component
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module — power component。售价 2.60 USD，当前有货，SKU NULL，归类于 PCBs – Breakout Boards – DIY Kits，页面可抽取 10 项量化参数。
- SKU
- NULL
- Price
- 2.60 USD
- Stock
- 有货
- Category
- PCBs – Breakout Boards – DIY Kits
适用场景 (Applicable scenarios)
- 电池充电与日常设备维护
核心参数 (Core specifications)
- 价格 / Price：2.60 USD
- Output current：10A (MAX)
- Input current：16A (MAX) (more than 10
- Output power：100W cooling capacity (M
- Output Ripple：2% (MAX) 20M-bandwidth
- No-load current：25mA typical
- Dynamic response speed：5% 200uS
- Size(LxWxH)：65x47x22mm
- 32V
- 35V
- 150W
竞品对比 (Competitor comparison)
- 本站现价 2.60 USD；同级竞品报价需商家提供后补全
- 可核对型号 SKU：NULL，便于与竞品逐项对照
- 已公开 10 项量化参数（见上节），可直接与竞品同参数比较
- 待商家补充：原厂/第三方参考价与差异结论
常见问题 (FAQ)
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 多少钱？ / How much does it cost?
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 现价 2.60 USD，库存状态：有货。
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 的 SKU / 型号是什么？ / What is the SKU?
SKU：NULL。
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 的核心参数有哪些？ / What are the key specifications?
Output current：10A (MAX)；Input current：16A (MAX) (more than 10；Output power：100W cooling capacity (M；Output Ripple：2% (MAX) 20M-bandwidth；No-load current：25mA typical；Dynamic response speed：5% 200uS。
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 属于哪个类目？ / Which category is it in?
类目：PCBs – Breakout Boards – DIY Kits。
150W DC-DC Boost Converter 10-32V In to 12-35V Out 6A Step Up Voltage Charger Module 适合哪些使用场景？ / What is it used for?
power component 相关场景：电池充电与日常设备维护。
Specifications
Input voltage: DC 10V-32V
Output voltage: DC12V-35V (adjustable)
Output current: 10A (MAX)
Input current:16A (MAX) (more than 10A, please add heatsink)
Output power: 100W cooling capacity (MAX) naturally increase the intensity of cooling 150W (MAX)
Use a 12V battery drive 19V 3.42A notebook
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: -40°c to +85°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS

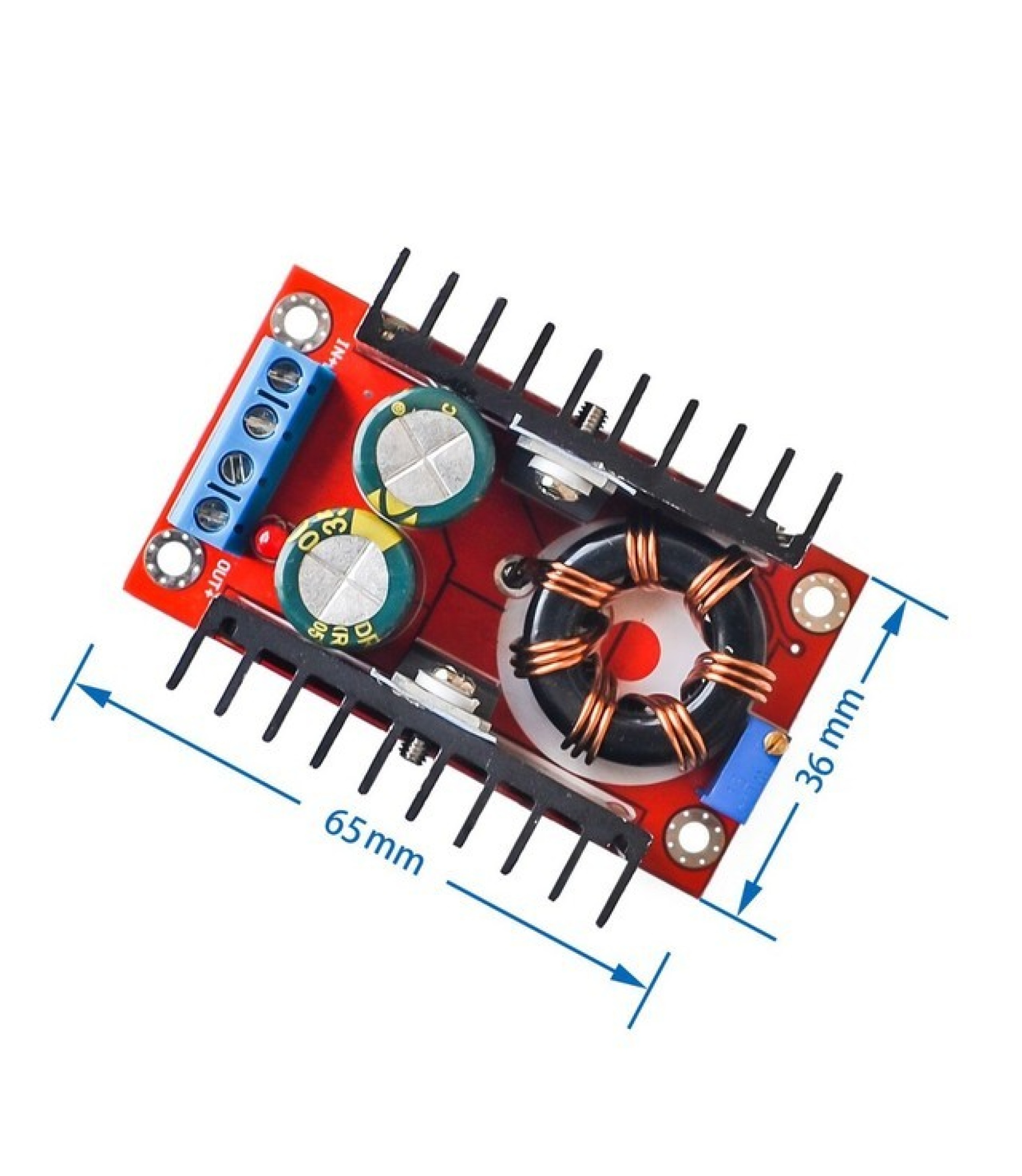

Size(LxWxH): 65x47x22mm
Applications
-DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
-Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
This product was updated on 25/12/2020
