1.8 inch RGB Character TFT Display Module 8Pins

$2.55

Regional payment methods

Payssion regional payment methods
Category:


1.8 inch RGB Character TFT Display Module 8Pins — module / board

1.8 inch RGB Character TFT Display Module 8Pins — module / board。售价 2.55 USD,当前有货,SKU NULL,归类于 Uncategorized,页面可抽取 5 项量化参数。

SKU
NULL
Price
2.55 USD
Stock
有货
Category
Uncategorized

适用场景 (Applicable scenarios)

  • 无人机整机装机与备件替换
  • 射频 / 微波系统集成:测试测量、通信基站、雷达与卫星链路

核心参数 (Core specifications)

  • 价格 / Price:2.55 USD
  • SIze:1.8inch
  • Power Supply:3.3VDC
  • LCD Color:65K Full color
  • 35mm
  • 20 to 70 °C

竞品对比 (Competitor comparison)

  • 本站现价 2.55 USD;同级竞品报价需商家提供后补全
  • 可核对型号 SKU:NULL,便于与竞品逐项对照
  • 已公开 5 项量化参数(见上节),可直接与竞品同参数比较
  • 待商家补充:原厂/第三方参考价与差异结论

常见问题 (FAQ)

1.8 inch RGB Character TFT Display Module 8Pins 多少钱? / How much does it cost?

1.8 inch RGB Character TFT Display Module 8Pins 现价 2.55 USD,库存状态:有货。

1.8 inch RGB Character TFT Display Module 8Pins 的 SKU / 型号是什么? / What is the SKU?

SKU:NULL。

1.8 inch RGB Character TFT Display Module 8Pins 的核心参数有哪些? / What are the key specifications?

SIze:1.8inch;Power Supply:3.3VDC;LCD Color:65K Full color;35mm;20 to 70 °C。

1.8 inch RGB Character TFT Display Module 8Pins 属于哪个类目? / Which category is it in?

类目:Uncategorized。

1.8 inch RGB Character TFT Display Module 8Pins 适合哪些使用场景? / What is it used for?

module / board 相关场景:无人机整机装机与备件替换、射频 / 微波系统集成:测试测量、通信基站、雷达与卫星链路。

TFT-LCD liquid crystal display (TFT) is thin film transistor liquid crystal display (TFT).TFT liquid crystal provides a semiconductor switch for each pixel, and each pixel can be directly controlled by point pulse, so each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled.Display color levels, TFT LCD color more real, good brightness, high contrast, strong sense of hierarchy, bright colors

Specifications

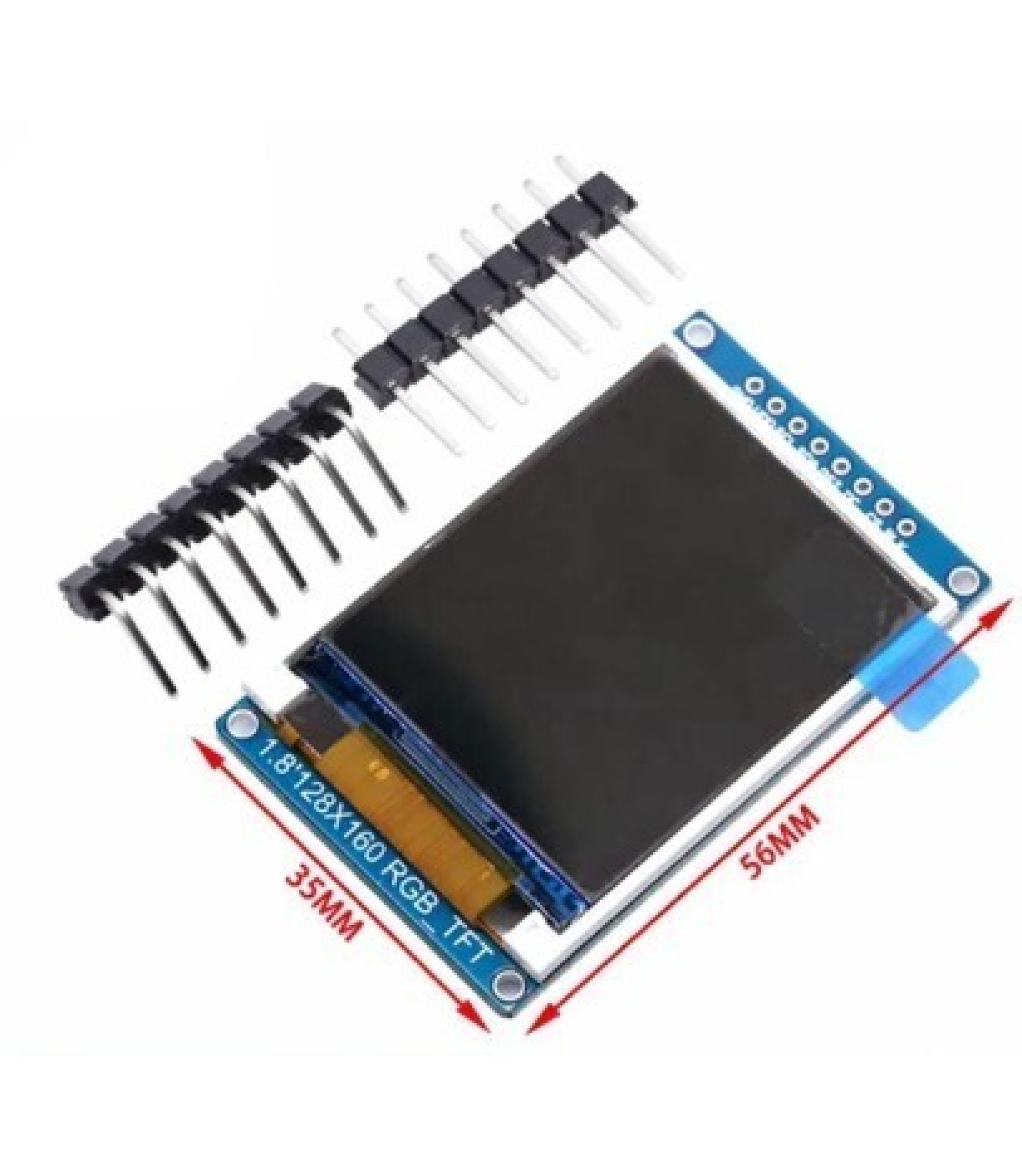

SIze: 1.8inch
Lattice size: 128*160
ST7735S Drive
Power Supply: 3.3VDC
LCD Color: 65K Full color

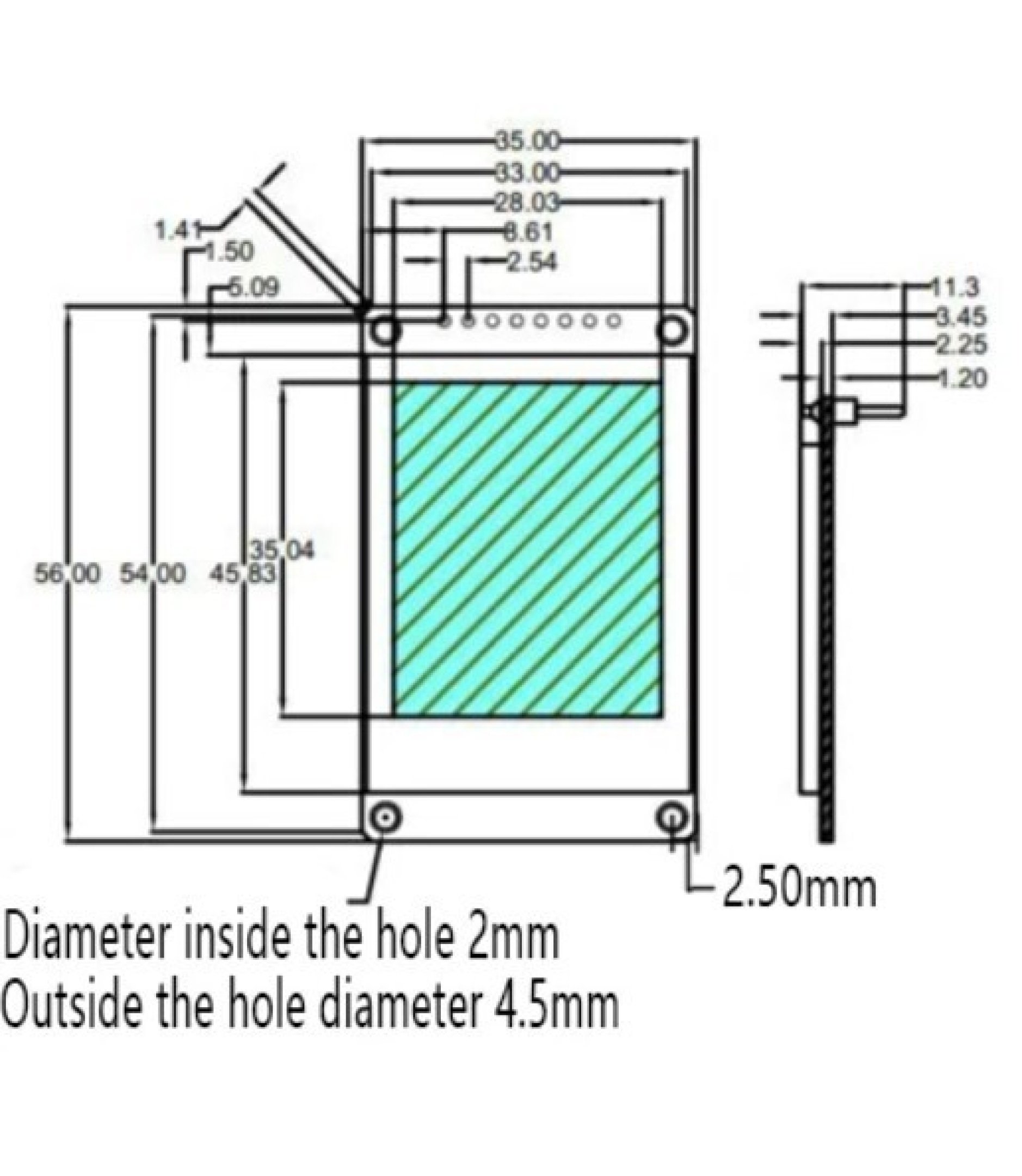

Display Area: 28*35mm
Hardware interface: SPI interface
Working temperature -20 to 70 °C

More Information
Same Spec Items
–
SKU
A-7402
Manufacturer
OEM
MPN
A-7402
Can be used with
–

Weight0.055 kg
